Gianneschi # ACB-90E-230/460V Self Priming Liquid Ring Pump 0.55kW 0.75 HP
Gianneschi # ACB-90E-230/460V

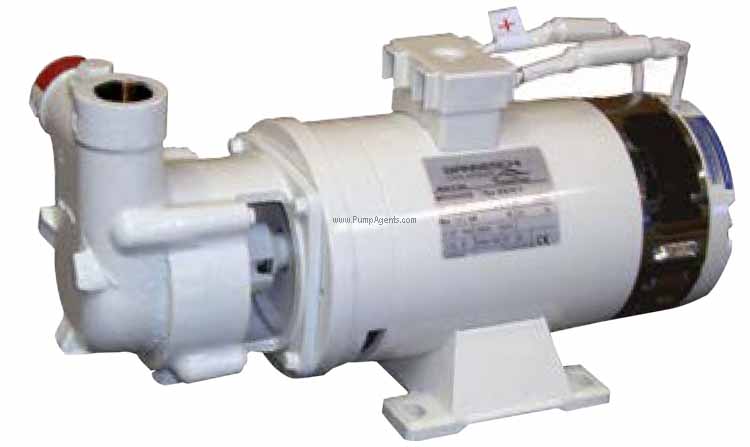

Gianneschi catalog # ACB-90E-230/460V, ACB Series Self Priming Liquid Ring Pump and Motor unit, Bronze construction, Brass impeller, 316 Stainless Steel Shaft. Motor is 0.55kW (0.75 Horsepower), 2900 RPM, 230/460 Volts AC, Three Phase. Inlet Port is 1 Inch, Discharge Port is 1 Inch.
Price : $ 1952.86
Product Information :
The Gianneschi ACB-90E-230/460V is a Bronze ACB Series Self Priming Liquid Ring Pump and Motor unit with Brass Impeller, 1 Inch by 1 Inch Ports, coupled to a 0.55kW (0.75 Horsepower), 2900 RPM, 230/460 Volts AC, Three Phase Motor. It is suggested to install a clapet valve and filter with this pump in order to prevent backflow, and one need only pump water through it on its first run in order for it to become fully operational. It comes specially equipped with a brass impeller, a high quality ceramic mechanical seal with graphite inox, a boronze body, and a 316 stainless steel shaft. It can operate at either 50 or 60 Hz at 0.74 Hp, can go as high as 2900 RPM, and is self-priming up to 8 m. Motor has B/F class Insulation, IP 55 Protection.
WEIGHT : The Gianneschi ACB-90E-230/460V weighs 30.8 Lbs.
Features :
Applications
Typical applications for the ACB90E230/460V include bilges, fire fighting, pumping of seawater or liquids with high gas content, water supplying, chain washing, as well as oil and diesel.
