Gianneschi # ACB-80E-230/460V Self Priming Liquid Ring Pump 0.37kW 0.5 HP

Gianneschi Pump ACB-80E-230/460V

Gianneschi # ACB-80E-230/460V

Gianneschi catalog # ACB-80E-230/460V, ACB Series Self Priming Liquid Ring Pump and Motor unit, Bronze construction, Brass impeller, 316 Stainless Steel Shaft. Motor is 0.37kW (0.5 Horsepower), 2900 RPM, 230/460 Volts AC, Three Phase. Inlet Port is 3/4 Inch, Discharge Port is 3/4 Inch.

Price : $ 1699.04

Qty :

2 Weeks (0 in stock)



Product Information :

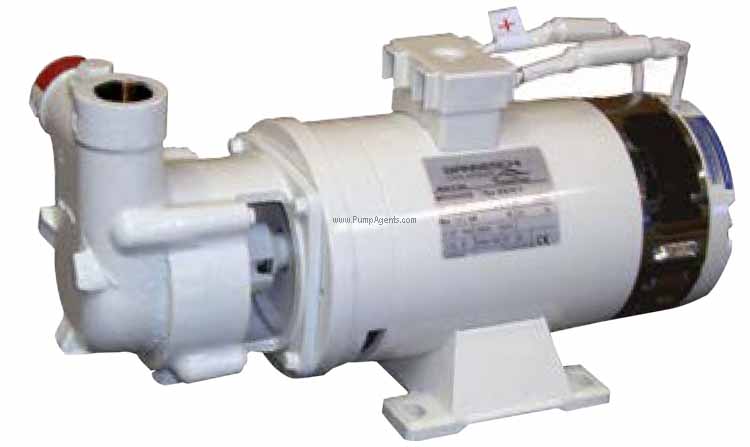

The Gianneschi ACB-80E-230/460V is a Bronze ACB Series Self Priming Liquid Ring Pump and Motor unit with Brass Impeller, 3/4 Inch by 3/4 Inch Ports, coupled to a 0.37kW (0.5 Horsepower), 2900 RPM, 230/460 Volts AC, Three Phase Motor. This pump can go as high as 2900 RPM, is self-priming up to 8 m, and can operate at either 50 or 60 Hz at 0.5 Hp. One only need pump water through it on its first run in order for it to become fully functional, and it is recommended that one install a clapet valve and a filter with to prevent any backflow. It comes specially equipped with a bronze body, a 316 stainless steel shaft, a high quality ceramic mechanical seal with graphite inox, and a brass impeller. Motor has B/F class Insulation, IP 55 Protection.
WEIGHT : The Gianneschi ACB-80E-230/460V weighs 24.2 Lbs.

Features :

Pump Body:
Bronze
Impeller:
Brass
Shaft:
316 Stainless Steel
Port Size:
Inlet Port is 3/4 Inch, Discharge Port is 3/4 Inch.
Motor Specs :
0.37kW (0.5 Horsepower), 2900 RPM, 230/460 Volts AC, Three Phase.

Applications

Typical applications for the ACB80E230/460V include the pumping of liquids with high gas content or seawater, as well as in chain washing, oli and diesel, fire fighting, bilges, and water supplying.
