Gianneschi # ACB-80E-12V Self Priming Liquid Ring Pump 0.45KW 0.6 HP

Gianneschi Pump ACB-80E-12V

Gianneschi # ACB-80E-12V

Gianneschi catalog # ACB-80E-12V, ACB Series Self Priming Liquid Ring Pump and Motor unit, Bronze construction, Brass impeller, 316 Stainless Steel Shaft. Motor is 0.45KW (0.6 Horsepower), 2600 RPM, 12 Volts DC. Inlet Port is 3/4 Inch, Discharge Port is 3/4 Inch.

Price : $ 2025.38

Qty :

Same Day (1 in stock)



Product Information :

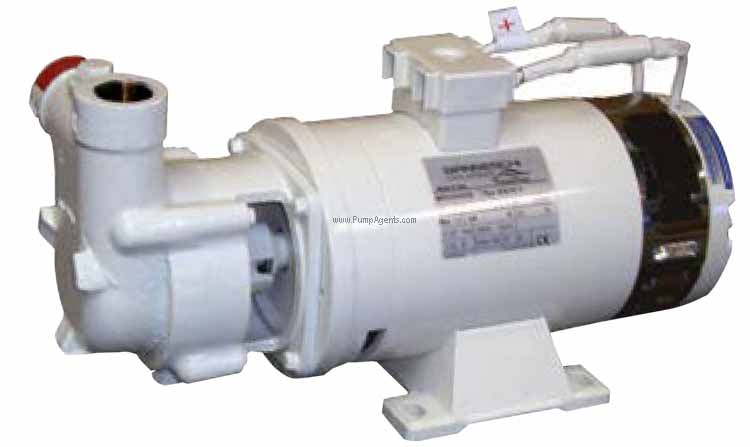

The Gianneschi ACB-80E-12V is a Bronze ACB Series Self Priming Liquid Ring Pump and Motor unit with Brass Impeller, 3/4 Inch by 3/4 Inch Ports, coupled to a 0.45KW (0.6 Horsepower), 2600 RPM, 12 Volts DC Motor. This pump operates at 12 V at 0.6 Hp, is self-priming at up to 8 m, and can go as high as 2600 RPM. It comes specially equipped with a bronze body, a 316 stainless steel shaft, a brass impeller, and a high quality ceramic mechanical seal with graphite inox. It is suggested that the customer orders a clapet valve and filter to install with it in order to avoid backflow, and it only requires that one pump water through it on its first run in order to be fully operational. Motor has B/F class Insulation, IP 20/22 Protection.
WEIGHT : The Gianneschi ACB-80E-12V weighs 24.2 Lbs.

Features :

Pump Body:
Bronze
Impeller:
Brass
Shaft:
316 Stainless Steel
Port Size:
Inlet Port is 3/4 Inch, Discharge Port is 3/4 Inch.
Motor Specs :
0.45KW (0.6 Horsepower), 2600 RPM, 12 Volts DC.

Applications

Typical applications for the ACB80E12V include chain washing, fire fighting, pumping seawater and liquids with a high gas content, diesel and oil pumping, bilges, and any water supplying applications.
