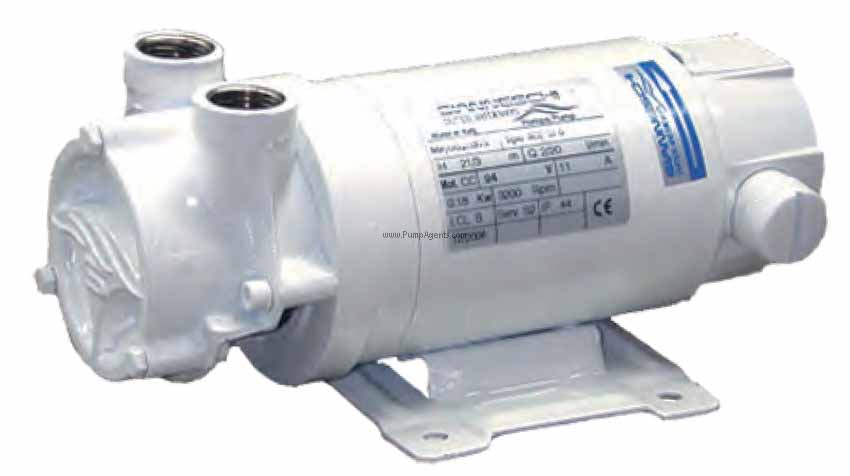

Gianneschi # ACB-61E-24V Self Priming Liquid Ring Pump 0.18KW 1/4 HP

Gianneschi Pump ACB-61E-24V

Gianneschi # ACB-61E-24V

Gianneschi catalog # ACB-61E-24V, ACB Series Self Priming Liquid Ring Pump and Motor unit, Bronze construction, Brass impeller, 316 Stainless Steel Shaft. Motor is 0.18KW (1/4 Horsepower), 3200 RPM, 24 Volts DC. Inlet Port is 1/2 Inch, Discharge Port is 1/2 Inch.

Price : $ 1147.37

Qty :

Same Day (2 in stock)



Product Information :

The Gianneschi ACB-61E-24V is a Bronze ACB Series Self Priming Liquid Ring Pump and Motor unit with Brass Impeller, 1/2 Inch by 1/2 Inch Ports, coupled to a 0.18KW (1/4 Horsepower), 3200 RPM, 24 Volts DC Motor. This pump is specially equipped with a brass impeller, 316 stainless steel shaft, bronze body, and a ceramic mechanical seal with graphite inox. It operates at 0.24 Hp, can go up to 3200 RPM, operates at 24 volts, and is self-priming up to 8 m. The pump must be first put through a water run, but then can operate with any specified fluid. It is recommended that the customer purchase a fiter and clapet valve to install with it to avoid backflow through it. Motor has B/F class Insulation, IP 20/22 Protection.
WEIGHT : The Gianneschi ACB-61E-24V weighs 15.5 Lbs.

Features :

Pump Body:
Bronze
Impeller:
Brass
Shaft:
316 Stainless Steel
Port Size:
Inlet Port is 1/2 Inch, Discharge Port is 1/2 Inch.
Motor Specs :
0.18KW (1/4 Horsepower), 3200 RPM, 24 Volts DC.

Applications

Typical applications for the ACB61E24V include fire fighting, oil and diesel, bilges, chain washing, and in pumping seawater as well as any fluids with high air content.
