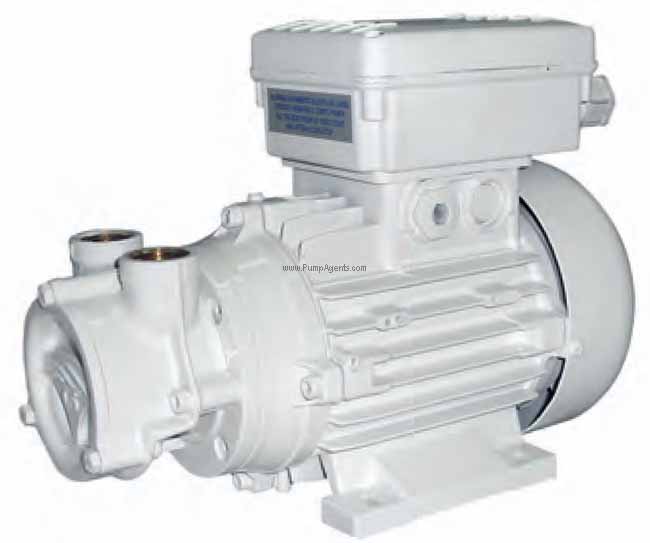

Gianneschi # ACB-61E-230V Self Priming Liquid Ring Pump 0.25KW 1/3 HP
Gianneschi # ACB-61E-230V
Gianneschi catalog # ACB-61E-230V, ACB Series Self Priming Liquid Ring Pump and Motor unit, Bronze construction, Brass impeller, 316 Stainless Steel Shaft. Motor is 0.25KW (1/3 Horsepower), 3500 RPM, 230 Volts, Single Phase. Inlet Port is 1/2 Inch, Discharge Port is 1/2 Inch.
Price : $ 1370.11
Product Information :
The Gianneschi ACB-61E-230V is a Bronze ACB Series Self Priming Liquid Ring Pump and Motor unit with Brass Impeller, 1/2 Inch by 1/2 Inch Ports, coupled to a 0.25KW (1/3 Horsepower), 3500 RPM, 230 Volt, Single Phase Motor. This pump operates at 50 to 60 Hz at 0.34 Hp and is self-priming up to 8 m. If run at 50 Hz, it can go as high as 2900 RPM, however, if run at 60 Hz, it can go even higher, at 3500 RPM. It is recommended that a filter and clapet valve are installed with it to prevent backflow, and one only need pump water through it on its first run for it to become fully operational. It comes speciallyy equipped with a high quality ceramic mechanical seal with graphite inox, a bronze body, a 316 stainless steel shaft, and a brass impeller. Motor has B/F class Insulation, IP 55 Protection.
WEIGHT : The Gianneschi ACB-61E-230V weighs 22.1 Lbs.
Features :
Applications
Typical applications for the ACB61E230V include fire fighting, oil and diesel, chain washing, water supplying, bilges, as well as in the pumping of liquids with high gas content and in seawater pumping.
