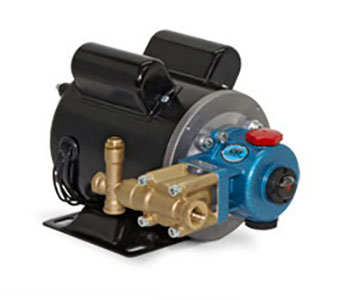

Cat Pump # 1CX025R Plunger Pump

The Cat Pump 1CX025R is a Plunger Pump, pump end only, with Brass construction, 3/8 inch NPT(F) Inlet port x 1/4 inch NPT(F) Discharge port, and is rated for up to 0.25 GPM, and 1250 PSI at maximum shaft speed of 1750 RPM. This triplex (three plunger rods) positive displacement, reciprocating plunger pump is constructed with a brass manifold, 304 stainless steel valve assemblies, solid ceramic plunger and standard NBR (Buna-N) seals and O-rings. The 1CX is the perfect fit for misting applications that require 0. 5 GPM or less. With seals that run thousands of hours before requiring any servicing, the 1CX is small but has the same life expectancy as our industrial products. This ultra-compact, direct-drive single plunger misting-cooling pump includes a pressure regulator for maintaining pressure with multiple nozzles. 1CX Series pumps couple to custom-designed 1/4 or 1/2 HP single-phase 60 Hz motors to fit in small spaces. There is a 50 Hz motor available as well. An optional pulse hose reduces pulsation and lowers the amp draw. This Plunger pump utilizes spring-loaded closed and hydraulically opened inlet and discharge valves to direct flow through the pump manifold. At the beginning of the stroke, the plunger displaces the liquid in the manifold chamber, forcing the discharge valve open. When the plunger reaches the end of the stroke, the discharge valve closes. As the plunger rod begins its backward stroke, the inlet valve opens to allow more liquid into the manifold chamber, thereby keeping a smooth forward flow of liquid. IMPORTANT : All high-pressure systems require a primary pressure regulating device (e. g. regulator, unloader) and a secondary pressure relief device (e. g. pop-off valve, relief valve). Failure to install such relief devices could result in personal injury or damage to pump or property.
