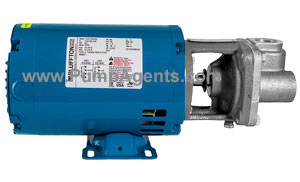

Burks catalog # 7CT8MV-SS, Turbine Pump and Motor unit. All STAINLESS STEEL Construction. Seal and O-ring are VITON. Pump is close Coupled to a 3/4 Horsepower, 3450 RPM, 115/230 Volts , 60 Hz, 1 Phase, ODP Motor. Ports are 1 Inch NPT Inlet, 1 Inch NPT Outlet.
Seal Kit :
Catalog # SK9762-9699, VITON Seal Kit for all CT5MV, CT6MV, CT7MV, CT8MV Series Turbine Pumps. Includes P/N # 09762-1 - Mechanical Seal - VITON, P/N # 9699 - Casing O-Ring - VITON
MATERIALS OF CONSTRUCTION Frame 316 Stainless Steel Raceway 303 Stainless Steel Impeller 303 Stainless Steel Shaft 316 Stainless Steel Shaft Seal CarbonCeramic / S. Steel / VITON MAXIMUM OPERATING CONDITIONS TEMPERATURE For Standard BunaN Seal 225F 107C INLET PRESSURE 100 PSI 689kPa CASING WORKING PRESSURE 250 PSI 1724kPa VISCOSITY 200 SSU FEATURES BURKS close coupled turbine pumps, Series CT, 3450 60Hz and 2900 50Hz R.P.M. and 4CT, 1725 R.P.M. are available for capacities up to 8 g.p.m. 0.50 L.P.S. pressures up to 150 p.s.i. 1034 kpa and temperatures up to 225F 107C, come with standard mechanical shaft seal. Special shaft seals are available for higher temperatures and fluids other than water.
These compact turbine pumps are designed for pumping clear water and many other nonabrasive, lower viscosity liquids. They are especially engineered for boiler feed on steam process applications and will serve up to a 38 hp. boiler at a 3 to 1 safety factor. These pumps are recommended for many application requiring higher pressures and lower capacities.
BURKS is the only turbine pump with LifeLok External Impeller Adjustment feature that allows readjustment of impeller without disturbing piping, disassembling pump or replacing parts. Gives up to 40 longer service life than turbine pumps of other designs.
