Burks # 310CS5MV-SS Pump and Motor - 1 HP 208-230/460 Volts

Burks Pump 310CS5MV-SS

Burks # 310CS5MV-SS

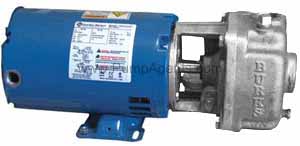

Burks catalog # 310CS5MV-SS, Turbine Pump and Motor unit. All STAINLESS STEEL Construction. Seal and O-ring are VITON. Pump is close Coupled to a 1 Horsepower, 3450 RPM, 208-230/460 Volts, 60 Hz, 3 Phase, ODP Motor. Ports are 1-1/4 Inch NPT Inlet, 1 Inch NPT Outlet.

OUT of STOCK



Product Information :

Features :


Parts and Accessories for Burks model 310CS5MV-SS


Shaft Seal :

Catalog # 09813-C, Mechanical Seal - Viton - .75"

In Stock

OUT of STOCK

Casing frozen or cracked ? New Pump Casing :

Catalog # 22859, Pump Outer Casing, with ports, Cast 316 Stainless Steel

In Stock

OUT of STOCK

Other Parts :

Catalog # 22864, Gasket-Viton

In Stock

OUT of STOCK

Applications

MATERIALS OF CONSTRUCTION Frame 316 Stainless Steel Case 316 Stainless Steel Raceway 303 Stainless Steel Impeller 303 Stainless Steel Shaft 303 Stainless Steel Shaft Seal CarbonCeramic / S. Steel / BunaN MAXIMUM OPERATING CONDITIONS TEMPERATURE For Standard BunaN Seal 225F 107C INLET PRESSURE 100 PSI 689kPa CASING WORKING PRESSURE 250 PSI 1724kPa VISCOSITY 200 SSU FEATURES • SelfPriming • Compact, Spacesaving size • No coupling eliminates misalignment problels • Dependable carbon/ceramic mechanical shaft seal for temperatures to 225F 107C. • Bronze impeller with Monel blades the only moving part • Bronze raceway with castin vortex pockets will not vapor lock • 303 Stainless Steel pump shaft • Easy to service • Every pump factory tested • Available Bronze fitted, All Bronze, Stainless Steel

BURKS is the only turbine pump with LifeLok External Impeller Adjustment feature that allows readjustment of impeller without disturbing piping, disassembling pump or replacing parts. Gives up to 40 longer service life than turbine pumps of other designs.
