Burks # 20WA6 Pump and Motor - 2 HP 115/230 Volts

Burks Pump 20WA6

Burks # 20WA6

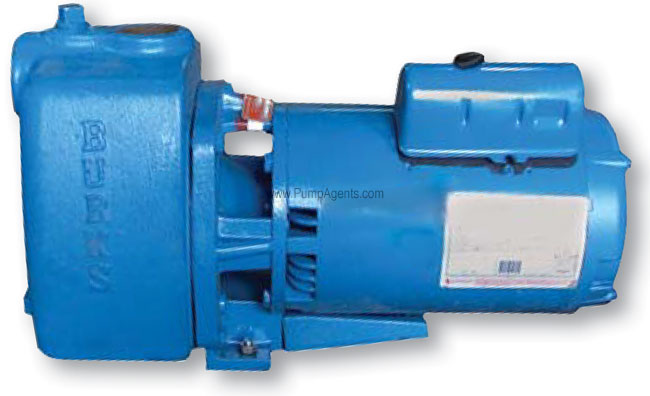

Burks catalog # 20WA6, Self Priming Centrifugal Pump and Motor unit. Bronze Fitted Cast Iron Construction w/ Plastic Impeller. Close Coupled to a 2 Horsepower, 3450 RPM, 115/230 Volts, 1 Phase Motor. Ports are 1-1/2 Inch NPT Inlet, 1-1/2 Inch NPT Outlet.

Price : $ 1174.20

Qty :

Same Day (1 in stock)



Product Information :


Parts and Accessories for Burks model 20WA6


Seal Kit :

Catalog # SK8514-8988, Seal Kit, BUNA Nitrile for all WA6 Series Pumps. Includes P/N # 8514-1 - Mechanical Seal - Buna N, P/N # 8988 - Casing Gasket, P/N # 04231 - Suction Sleeve Buna N

Price: $ 104.44

Qty :

Can Ship : Same Day (2 in stock)


Impeller :

Catalog # 21362, Impeller

Price: $ 220.80

Qty :

Can Ship : 4 Weeks (out of stock)

Applications

MATERIALS OF CONSTRUCTION Adapter Cast Iron Casing Cast Iron Diffuser Cast Iron Impeller Noryl Plastic Shaft 303 Stainless Steel Shaft Seal CarbonCeramic / S. Steel / BunaN MAXIMUM OPERATING CONDITIONS TEMPERATURE For Standard BunaN Seal 225F 107C INLET PRESSURE 100 PSI 690 kpa CASING WORKING PRESSURE 200 PSI 1379kpa VISCOSITY 200 SSU APPLICATIONS • Lawn Sprinkling • Pressure Boosting • Sprinkler Systems • Light Irrigation • Dewatering clean liquids • Transfer from underground storageFEATURES • Fast Priming pump stays primed. Flapper and check valves on suction pipe are not required, but are recommended. • Nonoverloading performance at all catalog ratings. • motors. • Leak Proof mechanical shaft seal self adjusting. • Cast Iron Casing with suction, discharge, prime, vacuum gauge and drain tappings.
