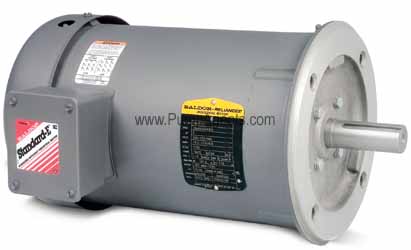

| Baldor model VM3554
|
SPECIFICATIONS |
|
Horsepower : |
1.500
|
|
Voltage : |
208-230/460 VOLTS
|
|
Phase : |
3
|
|
RPM : |
1800
|
|
Frequency : |
60
|
|
Enclosure : |
TEFC
|
|
Amps : |
5.0 Amps at 208 V, 4.6 Amps at 230 V 2.3 Amps at 460 V
|
|
Service Factor : |
1.15
|
|
Agency Approvals : |
CSA UR
|
|
Thermal : |
None
|
|
DIMENSIONS : |
35LYA013 CLICK HERE FOR DIMENSION SHEET (pdf)
|
|
Motor Length (C Dim) : 12.23
Shaft Diameter : |
0.625
|
|
Frame : |
NEMA
C-Face
|
|
Base : |
Round Body, NO Base.
|
|
Drip Cover : |
No Drip Cover
|
|
|
|
|
Baldor model VM3554 |
