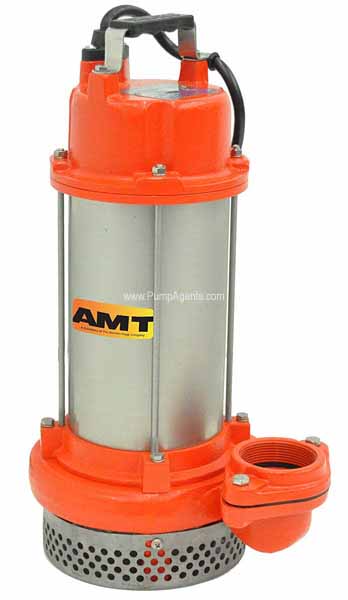

AMT # 5983-95 Cast Iron/Stainless Steel Industrial Submersible Pump and Motor 1 HP

AMT Pump 5983-95

AMT # 5983-95

AMT catalog # 5983-95, Industrial Submersible Pump and Motor unit. Cast Iron/Stainless Steel Construction. Pump is Close Coupled to a 1 Horsepower, 115V / 60 Hz Volts, Single Phase, Motor..

Price : $ 681.38

Qty :

4 Weeks (out of stock)

Click Here for PARTS


Product Information :

The AMT 5983-95 is a Cast Iron/Stainless Steel Industrial Submersible Pump and Motor unit with a Dual Ceramic Carbon Plus Shaft Seal Shaft Seal Mechanical Seal, coupled to a 1 Horsepower, 115V / 60 Hz Volts Motor. These stainless steel Submersible Drainage / Sump Pumps are intended for use in residential, commercial, and industrial settings. Examples include: Basements, boats, tanks, and other general drainage applications involving clean liquids. Submersible design means low noise and no priming issues. Each unit is completely assembled and features a self-cleaning semi-open impeller and a Viton mechanical shaft seal with carbon and ceramic wear faces. They also feature a secondary shaft seal and oil chamber. Pumps have a 3450 RPM electric motor fitted with a finished 3-prong grounding type power cord. Motors are rated continuous duty and have automatic restart thermal overload protection. Handle liquids from 40 degrees to 104 degrees F (4 degrees to 40 degrees C). For use with clean, clear water and other non-flammable, non-abrasive liquids compatible with pump component materials.

Features :

Pump Body:
Cast Iron/Stainless Steel
Shaft Seal:
Dual Ceramic Carbon Mechanical Seal Plus Shaft Seal Shaft Seal
Motor Specs :
1 Horsepower, 115V / 60 Hz Volts, Single Phase.

Product Specs :

Cast Iron Construction With Stainless Steel Housing

Automatic Float Switch

Stainless Steel External Hardware

Maximum Temp 104 degreesF

Double Mechanical Seal Construction

Built-In Carry Handle for Portability

Suction Screen

UL/CSA Listed

Parts and Accessories for AMT model 5983-95

Other Parts :

Catalog # 5983-350-90, Power Cord Kit 3 Inch Submersible

Price: $ 142.56

Qty :

Can Ship : 2 Weeks (0 in stock)


The AMT 598395 Industrial Submersible pumps are lightweight, portable, reliable and energy efficient. The clog resistant impeller is designed for general dewatering pump use of which applications include sump pumps, basements, construction drainage, dewatering, waste water treatments, agricultural irrigation, flooding and other applications requiring clear/drainage water removal. Motors are rated 115VAC at 60 Hz with standard cord/plug and have automatic thermal overload protection.
