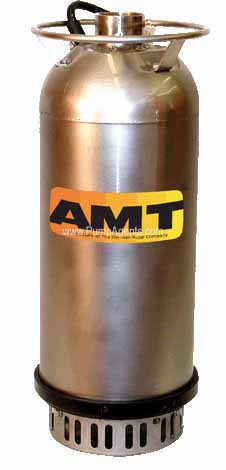

AMT # 5777-95 Cast Iron/SS Submersible Contractor Pump and Motor 3 HP

AMT Pump 5777-95

AMT # 5777-95

AMT catalog # 5777-95, Submersible Contractor Pump and Motor unit. Cast Iron/SS Construction with Hi Chromium Impeller and Dual Ceramic Carbon Mechanical Seal Plus Shaft Seal Shaft Seal. Pump is Close Coupled to a 3 Horsepower, 230 Volts, Single Phase, Motor. 3 Inch Discharge NPT Ports.

Price : $ 2254.64

Qty :

4 Weeks (out of stock)

Click Here for PARTS



Product Information :

The AMT 5777-95 is a Cast Iron/SS Submersible Contractor Pump and Motor unit with a Hi Chromium Impeller, Dual Ceramic Carbon Plus Shaft Seal Shaft Seal Mechanical Seal, 3 Inch Discharge NPT Ports, coupled to a 3 Horsepower, 230 Volts Motor. These versatile centrifugal Submersible Contractor pumps are intended for use in residential, commercial and industrial settings. Examples for usage include: construction sites, waste water, storm water, farming, mines, marine, basement and other general drainage applications involving sediment laden liquids with small solids. Submersible design means low noise and no priming issues. Each unit is completely assembled and includes a self-cleaning, semi-open impeller featuring abrasion-resistant high chromium steel construction for durability. Pumps incorporate a mechanical shaft seal with long lasting silicon carbide wear faces and feature a secondary shaft seal and oil chamber. Pumps have a 3450 RPM electric motor fitted with an unfinished power cord that requires field wiring (no controls are supplied). Motors are rated continuous duty and single phase units have automatic restart thermal overload protection. Handle liquids from 40 degrees to 104 degrees F (4 degrees to 40 degrees C). For use with non-flammable liquids compatible with pump component materials.

Features :

Pump Body:
Cast Iron/SS
Impeller:
Hi Chromium
Shaft Seal:
Dual Ceramic Carbon Mechanical Seal Plus Shaft Seal Shaft Seal
Port Size:
3 Inch Discharge NPT Ports.
Motor Specs :
3 Horsepower, 230 Volts, Single Phase.

Product Specs :

Cast Iron Construction

Hi Chromium Impeller and Cover

Stainless Steel Motor Housing

Silicon Carbide Seal with Shaft Seal

UL/CSA Listed

32 Ft. Cord with No Plug-

Suction Screen

Carrying Handle

Maximum Temperature 104 degrees F

Maximum Solids up to 3/8 Inch Diameter


Parts and Accessories for AMT model 5777-95


Impeller :

Catalog # 5777-010-90, Impeller Kit, Hi Chromium

Price: $ 704.70

Qty :

Can Ship : 2 Weeks (0 in stock)


Shaft Seal :

Catalog # 5777-300-90, Seal Kit

Price: $ 729.00

Qty :

Can Ship : 2 Weeks (0 in stock)

Applications

The AMT 577795 Submersible Contractor pumps are intended for use in residential, commercial and industrial settings. Applications include construction sites, waste water, storm water, farming, irrigation, excavation, mining, marine, basement and other general drainage applications involving sediment laden liquids with solids up to 3/8 in diameter. Selfcleaning impeller featuring abrasionresistant high chromium steel construction for durability. Pumps have a 3450 RPM electric motor fitted with an unfinished power cord that requires field wiring. Motors are rated and single phase models have thermal overload protection.
