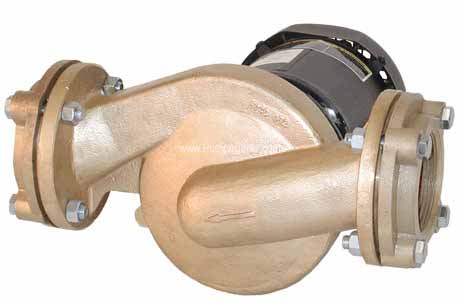

AMT # 5731-97 Bronze Inline Circulator Pump and Motor 1/2 HP

AMT Pump 5731-97

AMT # 5731-97

AMT catalog # 5731-97, Bronze Inline Circulator Pump and Motor unit. Bronze Construction. Pump is Close Coupled to a 1/2 Horsepower, 230/460 Volts, Three Phase, TEFC (Totally Enclosed Fan Cooled) Motor..

Price : $ 1468.50

Qty :

4 Weeks (out of stock)

Click Here for PARTS



Product Information :

The AMT 5731-97 is a Bronze Inline Circulator Pump and Motor unit with a Steel Stl Shaft Seal, coupled to a 1/2 Horsepower, 230/460 Volts, TEFC Totally Enclosed Fan Cooled Motor. Pump construction is cast bronze casing and adapter. Cast bronze impeller. EPDM type 6 mechanical shaft seal with carbon and ceramic wear faces. EPDM o-ring. Patterson/AMT Inline Circulator Pumps are designed for continuous duty industrial/commercial applications. Pumps are designed for liquid circulation in HVAC and industrial/commercial systems. Pumps are available in cast iron or bronze configurations to meet your specification. Pump casing is equipped with ⅛ NPT suction and discharge gauge ports. Pumps are powered by a 56C NEMA frame electric motor with conduit connection. Pump is equipped with precision lapped mechanical shaft seal to reduce the likelihood of leakage, O-ring sealed casing and a bronze impeller. Liquid range is 40̊ to 200̊ F (4̊ to 93̊ C). Liquid viscosity and specific gravity must be close to water; 31 SSU and 1.00 SG. Maximum casing pressure is 150 psi. Pump shipped with NPT flanges, flange gaskets and flange installation hardware. Check motor wiring before putting unit into service (see motor nameplate for specific wiring diagram). These are manual units. No controls are supplied.

Features :

Pump Body:
Bronze
Shaft Seal:
Stl Stl Shaft Seal
Motor Specs :
1/2 Horsepower, 230/460 Volts, Three Phase, TEFC (Totally Enclosed Fan Cooled).

Product Specs :

Mounting Flange Kit for 3 Inch NPT, Which Includes Flanges, Gaskets, and Fasteners

4-Bolt Flange Allows 360 degrees Mounting Rotation in 90 degrees Increments

1/8 Inch NPT Seal Wash/Vent Port

EPDM/EPR Mechanical Seal and O-Rings

Optional Buna-N Mechanical Seal and O-Ring Available

Stainless Steel Stub Shaft

High Efficiency Closed Impeller

Standard NEMA 56C Motor Mounting Dimensions

Maximum Working Pressure 150 PSI


Parts and Accessories for AMT model 5731-97


Seal Kit :

Catalog # 5730-300-91, EPDM Seal O-Ring and Gasket Kit

Price: $ 103.68

Qty :

Can Ship : 2 Weeks (0 in stock)


Impeller :

Catalog # 5735-010-97, Impeller Xb 1/3HP Hvac

Price: $ 660.96

Qty :

Can Ship : 2 Weeks (0 in stock)


Shaft Seal :

Catalog # 1643-411-00, 75 Ept/Car/Cer FS16 Seal Assembly

Price: $ 45.36

Qty :

Can Ship : 2 Weeks (0 in stock)


Casing frozen or cracked ? New Pump Casing :

Catalog # 5730-002-97, Casing Xb 3 Inch Hvac, Bronze

Price: $ 2272.86

Qty :

Can Ship : 2 Weeks (0 in stock)


Motor :

Catalog # 1626-022-00, Motor, 3/4 Horsepower, 1725 RPM, Volts, 3 Phase, TEFC Totally Enclosed Fan Cooled, 60/50 Hz, Nema 56J Frame, replacement electric motor only (pump is not included)

Price: $ 601.02

Qty :

Can Ship : 2 Weeks (0 in stock)

Applications

The AMT 573197 Inline Circulator Pumps are designed for industrial/commercial systems. Pumps are available in a variety of material configurations to meet your specifications. Pumps are powered by a 56C NEMA frame electric motor with 1/2 Inch conduit connection. Pumps are interchangeable with other manufacturers, see cross reference on specification page.
