AMT # 5700-97 - Circulator Pump
AMT # 5700-97

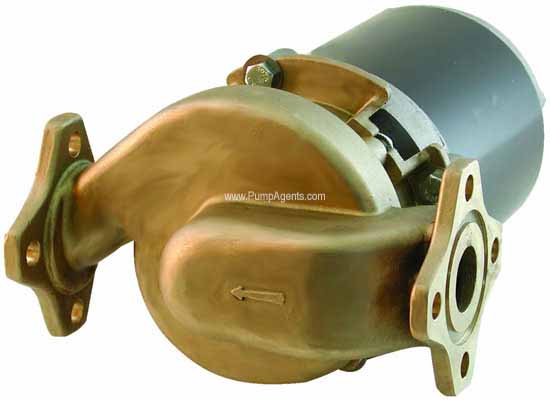

AMT catalog # 5700-97, Inline Circulator Pump and Electric Motor assembly, factory assembled with a 1/4 Horsepower, Single Phase, ODP (Open Drip Proof) AC Electric Motor.
Price : $ 491.28
Product Information :
Features :
Pump Body:
Bronze
Impeller:
Stainless Steel
Shaft:
Mechanical Seal
Port Size:
Mechanical Seal EPDM
Motor / Amp Draw:
1/4 Horsepower Horsepower, , Single Phase, ODP (Open Drip Proof)
Applications
Patterson Inline Circulator Pumps are designed for industrial/ commercial systems. Pumps are available in a variety of material configurations to meet your specifications. All models are powered by a single phase 115V ODP 56J NEMA frame 1/4 HP electric motor with 1/214 NPSM conduit connection. Direct coupled design eliminates stub shaft, oiled bearing and and coupling, reducing maintenance. Pumps are interchangeable with other manufacturers, see cross reference on specification page.
