AMT # 5585-H6 Cast Aluminum Self-Priming Trash Pump and Engine 24 HP

AMT Pump 5585-H6

AMT # 5585-H6

AMT catalog # 5585-H6, Self-Priming Trash Pump and Motor unit. Cast Aluminum Construction with Stainless Steel Impeller and Viton/SIC Shaft Seal. Pump is Close Coupled to a 24 Horsepower, Honda V-Twin OHV Engine Motor..

Price : $ 13997.74

Qty :

4 Weeks (out of stock)

Click Here for PARTS


Product Information :

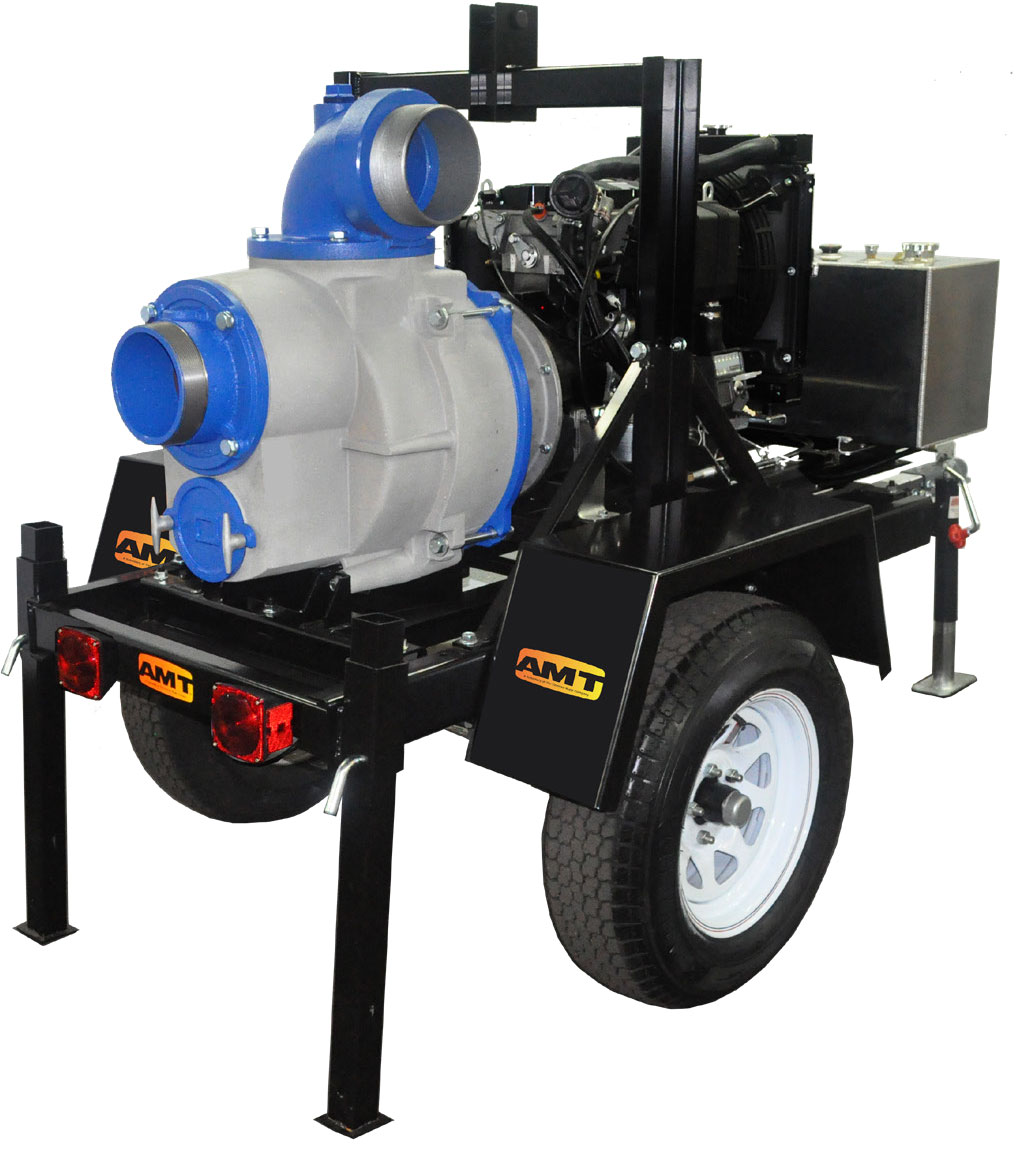

The AMT 5585-H6 is a Cast Aluminum Self-Priming Trash Pump and Engine unit with a Stainless Steel Impeller, Viton/SIC Shaft Seal, coupled to a 24 Horsepower, Honda V-Twin OHV Engine. This trash pump is heavy duty, centrifugal, engine driven, self-priming (to 20 ft. lift), and transportable unit. Pump is equipped with precision lapped mechanical shaft seal to reduce the likelihood of leakage, and a clog resistant impeller capable of handling solids up to 3" in spherical diameter. Units are used to handle water containing stones, sticks, mud, and other solids (up to 20 percent by volume). O-ring sealed flange connection to provide leak-free low maintenance operation. Suction flange male NPT threaded for direct coupling to a standard NPS hose connector with rubber gasket. Liquid temperature range is 40 degrees to 180 degrees F (4 degrees to 82 degrees C). Maximum casing pressure if used in a flooded suction application is 50 psi. For use with nonflammable liquids that are compatible with pump component materials. All models come equipped with a 12V electric starting system (battery not included). A fully plumbed fuel tank is standard. Gas engine units are equipped with a 12 gallon plastic tank and diesel engine units have an 18 gallon aluminum tank. All units equipped with a digital tachometer/hour meter. Pump and engine are mounted on an easy maintenance sliding frame assembly. Frame can be equipped with pneumatic tires, lighting system, support jacks, and a 2" diameter ball mount tongue hitch. A lunette ring is optional.

Features :

Pump Body:
Cast Aluminum
Stainless Steel
Shaft Seal:
Viton/SIC Shaft Seal
Motor Specs :
24 Horsepower, Honda V-Twin OHV Engine.

Product Specs :

Cast Aluminum with Cast Iron and Stainless Steel Components for Long Lasting Durability

Silicon Carbide/Viton Mechanical Seal and Buna-N O-rings and Check Valve

Built-in Check Valve for Fast Priming to 20 Feet

Maximum Solids Handling 3

6 NPT Port Size

Delivers up to 1,000 GPM

Digital Tachometer/ Hourmeter Installed

Maximum Temperature 180 degrees F

12 Volt DC Electric Start

Parts and Accessories for AMT model 5585-H6

Seal Kit :

Catalog # 5585-300-90, O-Ring Gasket

Price: $ 63.18

Qty :

Can Ship : 2 Weeks (0 in stock)

Impeller :

Catalog # 5585-010-98, Impeller Xss

Price: $ 1785.24

Qty :

Can Ship : 2 Weeks (0 in stock)

Casing frozen or cracked ? New Pump Casing :

Catalog # 5585-001-96, Casing Xal

Price: $ 4876.20

Qty :

Can Ship : 2 Weeks (0 in stock)


The AMT 5585H6 6 Inch Engine Driven Trash Pumps are designed for applications requiring high volume flow and solid/debris handling capabilities. Pump is constructed of heavy duty sand cast aluminum with cast iron and stainless steel internal parts for wear resistance and durability. Patented builtin slide mechanism features nylon and powder coated steel components that permit servicing, repairing and cleaning entire pump without removing hoses or pump components from trailer. Digital tachometer/hourmeter installed. Requires 12 Volt Battery BCI Group 24, Minimum of 500 CCA Battery Box Cables Setup for Automotive Post Type Connection.
