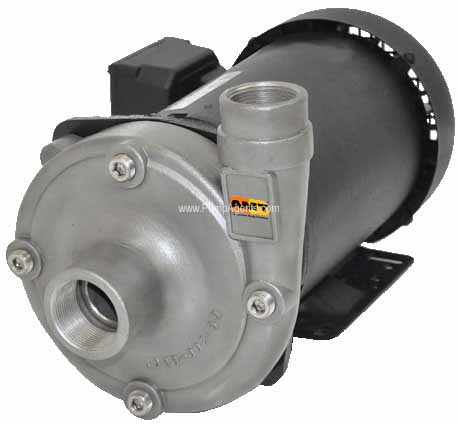

AMT # 4900-98 Stainless Steel High Head Centrifugal Pump and Motor 3 HP

AMT Pump 4900-98

AMT # 4900-98

AMT catalog # 4900-98, Stainless Steel High Head Centrifugal Pump and Motor unit. Stainless Steel Construction. Pump is Close Coupled to a 3 Horsepower, 230 Volts, Single Phase, ODP (Open Drip Proof), NEMA 56J Frame Electric Motor. 1-1/2 inch x 1-1/4 inch NPT Ports.

Price : $ 1181.65

Qty :

4 Weeks (out of stock)

Click Here for PARTS



Product Information :

The AMT 4900-98 is a Stainless Steel High Head Centrifugal Pump and Motor unit with a Viton/SS Shaft Seal, 1-1/2 inch x 1-1/4 inch NPT Ports, coupled to a 3 Horsepower, 230 Volts, ODP Open Drip Proof, NEMA 56J frame electric Motor. Pump construction is cast 300 series stainless steel casing, adapter and impeller. Viton type 21 mechanical shaft seal with carbon and ceramic wear faces. O-ring casing seal. Handles liquids from 40 to 200 F (4 to 93 C). These pumps are non-self-priming units designed for use where higher heads are needed to handle liquid transfer, heating and cooling application, where no suction lift is required. All models feature high efficiency closed impellers and continuous duty, 3450 RPM, 56J frame motors. The discharge port on all models can be rotated in 90 degrees increments to accommodate specific applications. Casing working pressure to 150 psi (1034 kPa). These are manual units, no controls are supplied. Single phase units are capacitor start and have automatic thermal protection. Check motor wiring before putting unit into operation (see motor nameplate for specific wiring diagrams). All units are for use with nonflammable, non-abrasive liquids compatible with pump component materials.

Pumps are not self-priming and require flooded suction.

Features :

Pump Body:
Stainless Steel
Shaft Seal:
Viton/SS Shaft Seal
Port Size:
1-1/2 inch x 1-1/4 inch NPT Ports.
Motor Specs :
3 Horsepower, 230 Volts, Single Phase, ODP (Open Drip Proof)., NEMA 56J Frame Electric.

Product Specs :

Discharge port rotates in 90 degree increments

High efficiency closed impeller


Parts and Accessories for AMT model 4900-98


Shaft Seal :

Catalog # 1640-161-97, Mechanical Seal, Viton, Type 21, size 5/8 Inch

Price: $ 54.00

Qty :

Can Ship : Same Day (3 in stock)

Applications

The AMT 490098 High Head End Suction Centrifugal pumps are designed for continuousduty OEM, Industrial/Commercial and processing applications including circulation, chemical processing, liquid transfer, heating and cooling, sprinkler/fire protection systems and pressure boosting. These heavy duty high pressure pumps are available in a variety of construction and seal materials to meet your specification. Pullfromrear design for easy servicing without disturbing any piping. High efficiency closed impeller maximizes performance.
