AMT # 4789-95 Cast Iron High Pressure Pump and Engine 5 HP
AMT # 4789-95

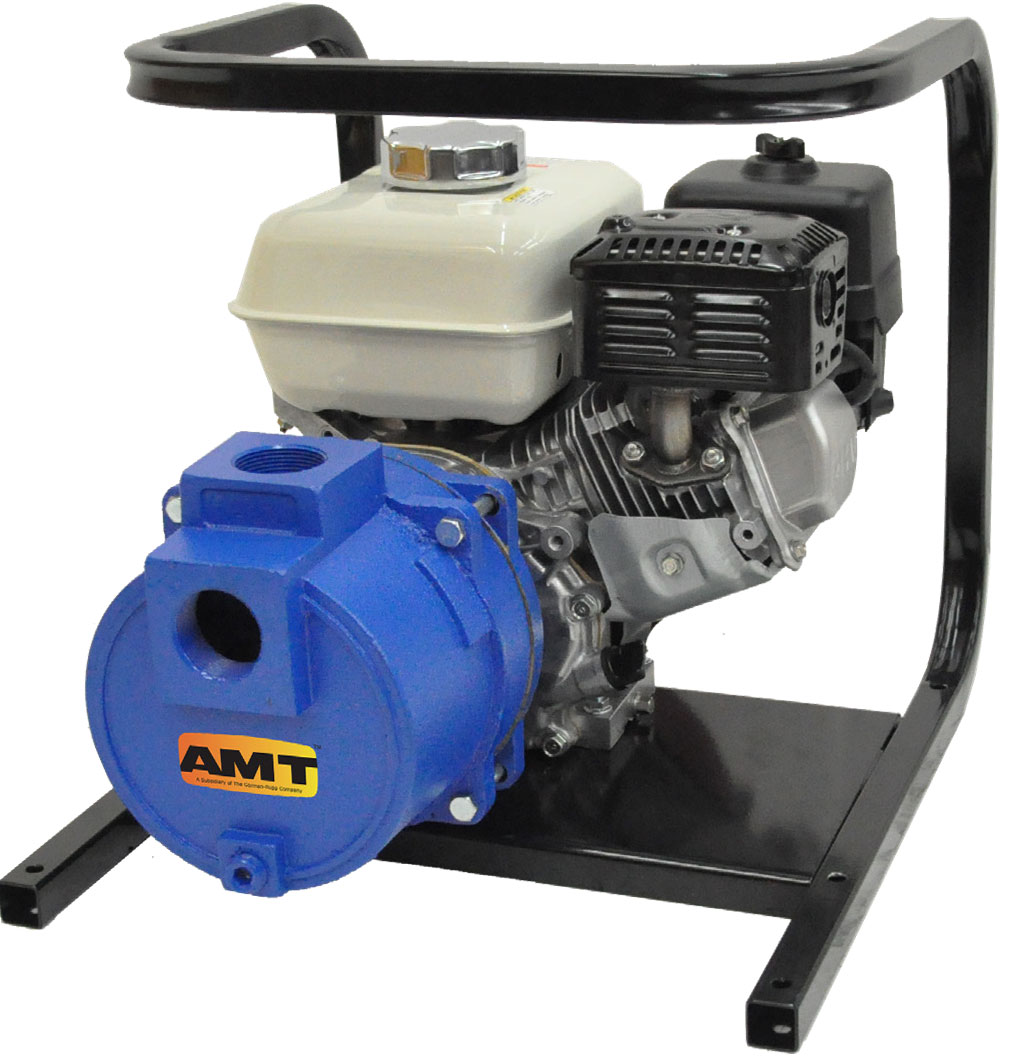

AMT catalog # 4789-95, High Pressure Pump and Motor unit. Cast Iron Construction with Stainless Steel Impeller and Buna-N Shaft Seal. Pump is Close Coupled to a 5 Horsepower, Honda GX160 Engine Motor. 1-1/2 Inch NPT Ports.
Price : $ 1329.48
Product Information :
Parts Page (click here)
Product Manual PDF (view)The AMT 4789-95 is a Cast Iron high pressure Pump and Engine unit with a Stainless Steel Impeller, Buna-N Shaft Seal, 1-1/2 Inch NPT Ports, coupled to a 5 Horsepower, Honda GX160 Engine. These self-priming (to 20 ft. lift) high pressure engine driven pumps are equipped with two 316 stainless steel high performance impellers and a Buna-N mechanical seal to prevent leakage, coupled to a 4-cycle gasoline engine. The pump is designed for higher pressure applications such as lawn sprinkling, spraying irrigation, also, draining and general dewatering applications. Handles liquids from 40 degrees to 180 degrees F (4 degrees to 82 degrees C). For use with nonflammable liquids, compatible with pump component materials.
Features :
Product Specs :
Cast Iron Construction with Stainless Steel Closed Impellers
Buna-N Mechanical Seal and O-Ring
1-1/2 Inch NPT Port Size
Self-Priming
Maximum Flow up to 68 GPM
Maximum Head up to 90 PSI
Heavy Duty Steel Roll Frame Included
Parts and Accessories for AMT model 4789-95
Shaft Seal :
Catalog # 1640-162-96, Mechanical Seal, Buna-N, Type 21, size 3/4 Inch
Price: $ 30.78
Applications
The AMT 478995 Engine Driven High Pressure pumps are designed for lawn sprinkling, agricultural spraying, dewatering, fire fighting, emergency water supply and pressure boosting. Twostage models feature cast iron diffusers and 300 series stainless steel investment cast impellers for high efficiency producing up to 90 PSI that generally requires 8 horsepower or more from a single stage pump. Pumps offer a broad selection of gasoline engines from the leading engine manufacturer with dependable service worldwide. All models include cast iron pipe nipples, 90 degrees discharge elbow, strainer/foot valve and rugged heavy duty steel roll frame for protection and durability.
