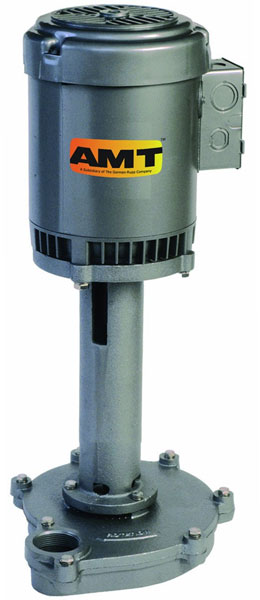

AMT # 4440-95 Cast Iron Industrial Coolant Pump and Motor 3/4 HP

AMT Pump 4440-95

AMT # 4440-95

AMT catalog # 4440-95, Industrial Coolant Pump and Motor unit. Cast Iron Construction with Stainless Steel Impeller and Fiber Gasket Shaft Seal. Pump is Close Coupled to a 3/4 Horsepower, 115/230 Volts, Single Phase, TEFC (Totally Enclosed Fan Cooled), NEMA 56C Frame Electric Motor. 1-1/2 Inch Discharge NPT Ports.

Price : $ 641.69

Qty :

2 Weeks (0 in stock)

Click Here for PARTS



Product Information :

The AMT 4440-95 is a Cast Iron Industrial Coolant Pump and Motor unit with a Stainless Steel Impeller, Fiber Gasket Shaft Seal, 1-1/2 Inch Discharge NPT Ports, coupled to a 3/4 Horsepower, 115/230 Volts, TEFC Totally Enclosed Fan Cooled, NEMA 56C frame electric Motor. These coolant/recirculating pumps are heavy-duty industrial units designed for a variety of applications involving evaporating coolers, fountains, laboratories, bilge pumping, etc. Each pump is constructed using cast iron column and base parts, stainless steel impeller, shaft and hardware. All units are manual models; no controls are supplied. For use with nonflammable liquids, compatible with pump component materials. A Universal mounting bracket system is included with these pumps.

Maximum Recommended Viscosity: 500 SSU

Features :

Pump Body:
Cast Iron
Impeller:
Stainless Steel
Shaft Seal:
Fiber Gasket Shaft Seal
Port Size:
1-1/2 Inch Discharge NPT Ports.
Motor / Amp Draw:
3/4 Horsepower, 115/230 Volts, Single Phase, TEFC (Totally Enclosed Fan Cooled)., NEMA 56C Frame Electric.

Product Specs :

Cast Iron Casing and Column

Includes Universal Mounting Bracket

Self-cleaning, Semi-open Stainless Steel Impeller

Maximum Temperature 200 degrees F


Parts and Accessories for AMT model 4440-95


Motor :

Catalog # 1626-006-00, Motor, 3/4 Horsepower, 1725 RPM, 115/208-230 Volts, 1 Phase, TEFC Totally Enclosed Fan Cooled, Nema 56C Frame, replacement electric motor only (pump is not included)

Price: $ 500.85

Qty :

Can Ship : Same Day (2 in stock)

Applications

The AMT 444095 Heavy Duty Industrial Coolant pump has been designed for a broad range of Industrial/Commercial coolant and recirculating applications.
