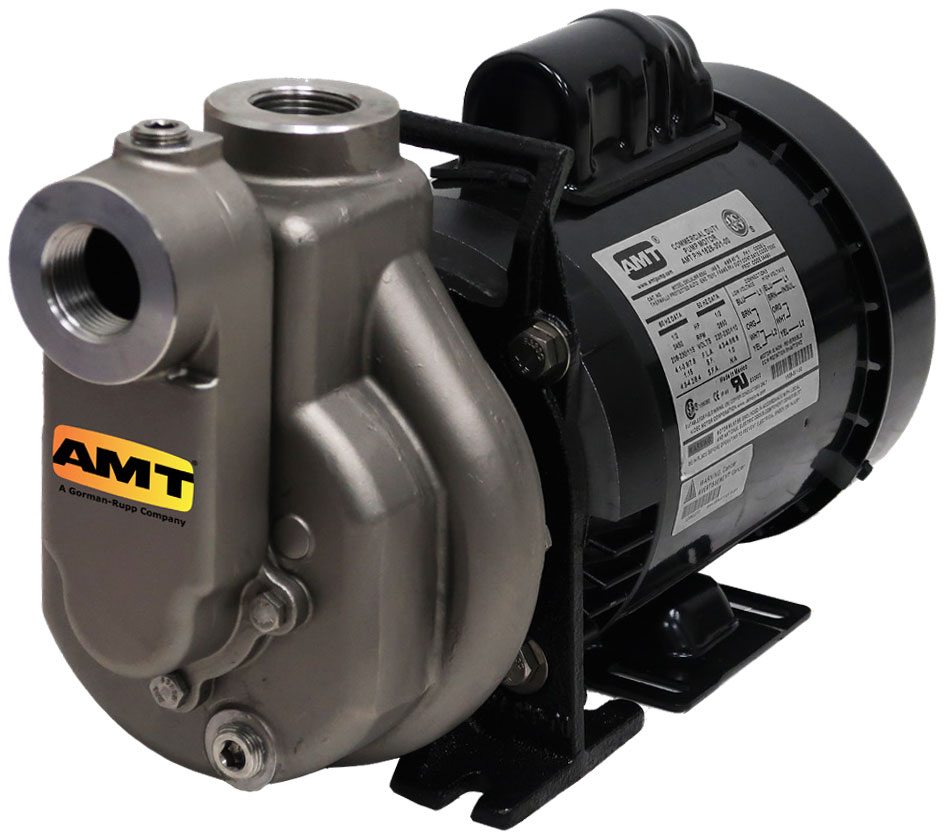

AMT # 429L-98 Stainless Steel Self-Priming Centrifugal Pump and Motor 1 HP

AMT Pump 429L-98

AMT # 429L-98

AMT catalog # 429L-98, Stainless Steel Self-Priming Centrifugal Pump and Motor unit. Stn. Steel Construction with Stainless Steel Impeller and Viton/SS Shaft Seal. Pump is Close Coupled to a 1 Horsepower, 230/460 Volts, Three Phase, TEFC (Totally Enclosed Fan Cooled), NEMA 56J Frame Electric Motor. 1 inch x 1 inch NPT Ports.

Price : $ 989.77

Qty :

4 Weeks (out of stock)

Click Here for PARTS



Product Information :

The AMT 429L-98 is a Stainless Steel Self-Priming Centrifugal Pump and Motor unit with a Stainless Steel Impeller, Viton/SS Shaft Seal, 1 inch x 1 inch NPT Ports, coupled to a 1 Horsepower, 230/460 Volts, TEFC Totally Enclosed Fan Cooled, NEMA 56J frame electric Motor. These stainless steel with Viton seal pumps are self-priming (to 6 ft. lift) units designed for transferring perchlorethylene and other non-flammable liquid chemicals. Handle liquids from 40 degrees F to 180 degrees F (4 degrees C to 82 degrees C). Units should be used only with non-abrasive, non-flammable liquids that are compatible with pump component materials.

Features :

Pump Body:
Stn. Steel
Impeller:
Stainless Steel
Shaft Seal:
Viton/SS Shaft Seal
Port Size:
1 inch x 1 inch NPT Ports.
Motor Specs :
1 Horsepower, 230/460 Volts, Three Phase, TEFC (Totally Enclosed Fan Cooled)., NEMA 56J Frame Electric.

Product Specs :

300 Series Investment Cast Stainless Steel Construction

Viton Mechanical Seal and O-Ring

Handles Liquids and Chemicals with Specific Gravities up to 1.6

1 Inch NPT Suction and Discharge Ports

Maximum Temperature 200 degrees F

Self-priming to 6 Ft.

Self-Cleaning, Semi-Open Impeller


Parts and Accessories for AMT model 429L-98


Shaft Seal :

Catalog # 1640-161-91, Mechanical Seal, Viton/Carbon/Ceramic, Type 16, size 5/8 Inch

Price: $ 58.05

Qty :

Can Ship : Same Day (8 in stock)


Motor :

Catalog # 1627-309-00, Motor, 1 Horsepower, 3450 RPM, Volts, 3 Phase, TEFC Totally Enclosed Fan Cooled, 50/60 Hz Premium Efficient, Nema 56J Frame, replacement electric motor only (pump is not included)

Price: $ 529.74

Qty :

Can Ship : 2 Weeks (0 in stock)


Other Parts :

Catalog # 4295-300-90, Viton Gasket/O-Ring Kit

Price: $ 14.85

Qty :

Can Ship : Same Day (2 in stock)

Applications

The AMT 429L98 300 Series Investment Cast Stainless Steel Transfer pumps are designed to handle liquids and chemicals with specific gravities to 1.6. The pumps are particularly well suited to applications involving perchloroethylene and are recommended for use with nonflammable liquids.
