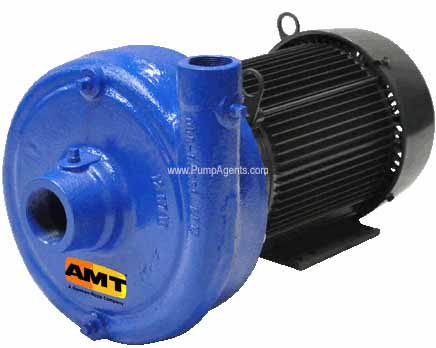

AMT # 428A-95 Cast Iron Centrifugal Pump and Motor 25 HP
Product Information :
The AMT 428A-95 is a Cast Iron Centrifugal Pump and Motor unit with a Silicon Bronze Impeller, Viton/Silicon/Carbide Shaft Seal, 4 inch Inlet x 3 inch Outlet NPT Ports, coupled to a 25 Horsepower, 208-230/460 Volts, TEFC Totally Enclosed Fan Cooled, NEMA 284JM frame electric Motor. These non-self-priming centrifugal pumps are intended for liquid transfer, heating and cooling circulation, booster service and other indust rial applications where no suction lift is required. This manual covers the installation, operation and maintenance of AMT 1750 RPM centrifugal pumps. These pumps are a centrifugal, single stage; single suction type furnished with mechanical seals. When properly installed and when given reasonable care and maintenance, centrifugal pumps should operate satisfactorily for a long period of time. Centrifugal pumps use the centrifugal force principal of accelerating the liquid within a rotating impeller collecting it and converting it to pressure head in a stationary volute. The back pullout design allows for removal of the motor and integral rotating element without disturbing the suction and discharge piping. The suction and discharge nozzles are drilled and tapped for gauge connections. Pump casings are drilled and tapped for complete pump drain. Casing wear rings are provided as standard equipment.
Pumps require a flooded suction and positive suction pressure. These are manual units, no controls are supplied. For use with nonflammable, non-abrasive liquids compatible with pump component materials
Features :
Product Specs :
Cast iron construction
Viton/silicon carbide/carbon mechanical seal
Silicon bronze precision cast dynamically balanced impeller
Bronze case wear ring
2 inch x 1.5 inch npt ports
1/4 inch npt gauge taps on suction & discharge ports for system monitoring
Bronze shaft sleeve to protect motor shaft
Maximum casing pressure 175 psi
Maximum temperature 200 degrees f
Includes seal flush/air relief valve
Front drain plugs
1750 rpm tefc jm nema frame ie2/epac energy efficient motors
Parts and Accessories for model 428A-95
Impeller :
Catalog # 428A-010-97, Impeller Kit, Silicon Bronze
Price: $ 1263.60
Shaft Seal :
Catalog # 427A-160-90, Seal and Deflector Kit
Price: $ 243.00
Casing frozen or cracked ? New Pump Casing :
Catalog # 428A-001-95, Casing Kit, Cast Iron, with 4 inch Inlet x 3 inch Outlet NPT Ports
Price: $ 1428.84
Motor :
Catalog # 1627-371-00, Motor, 15 Horsepower, 1750 RPM, Volts, 3 Phase, TEFC Totally Enclosed Fan Cooled, 50/60 Hz Premium Efficient, Nema 254JM Frame, replacement electric motor only (pump is not included)
Price: $ 3434.40
Applications
The AMT 428A95 Cast Iron 1750 RPM Solids Handling End Suction Centrifugal pump delivers high efficiency performance that minimizes operation and energy costs. Built to last, each pump features a precision cast bronze impeller that is dynamically balanced to minimize vibration and maximize motor bearing life. Pullfromrear design simplifies maintenance without disturbing piping connection. Gauge taps at the suction and discharge ports allow for system monitoring. Maximum 1/4" diameter solids handling and optional seal flush/air relief valve is available for vertical installations.
