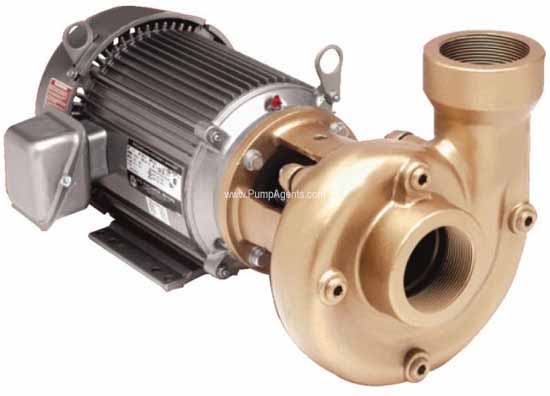

AMT # 4240-94 Cast Bronze Bronze Industrial Centrifugal Pump and Motor 7-1/2 HP

AMT Pump 4240-94

AMT # 4240-94

AMT catalog # 4240-94, Bronze Industrial Centrifugal Pump and Motor unit. Cast Bronze Construction. Pump is Close Coupled to a 7-1/2 Horsepower, 230/460 Volts, Three Phase, TEFC (Totally Enclosed Fan Cooled), NEMA 184JM Frame Electric Motor. 2 inch x 1-1/2 inch NPT Ports.

Price : $ 1963.87

Qty :

4 Weeks (out of stock)

Click Here for PARTS



Product Information :

The AMT 4240-94 is a Cast Bronze Bronze Industrial Centrifugal Pump and Motor unit with a Viton/SS Shaft Seal, 2 inch x 1-1/2 inch NPT Ports, coupled to a 7-1/2 Horsepower, 230/460 Volts, TEFC Totally Enclosed Fan Cooled, NEMA 184JM frame electric Motor. Viton seals handle liquids from 40 degrees to 200 degrees F (4 degrees to 90 degrees C). These non self-priming centrifugal pumps are intended for liquid transfer, heating and cooling circulation, booster service and other industrial applications where no suction lift is required. All models feature a semi-open clog resistant impeller and a pull-from-the-rear design for easy servicing. A dual volute casing is used on all models except 4240. A mechanical seal (comprised of carbon, ceramic and stainless steel components) isolates motor shaft from liquid being pumped. Discharge port on pump casing can be rotated in 90 degrees increments with vent and drain plugs for all positions. Maximum ambient temperature 104 degrees F (40 degrees C). Casing working pressure to 100 psi (689 kPa). These are manual units, no controls are supplied. For use with nonflammable, non-abrasive liquids compatible with pump component materials.

Pumps are not self-priming and require flooded suction.

Features :

Pump Body:
Cast Bronze
Shaft Seal:
Viton/SS Shaft Seal
Port Size:
2 inch x 1-1/2 inch NPT Ports.
Motor Specs :
7-1/2 Horsepower, 230/460 Volts, Three Phase, TEFC (Totally Enclosed Fan Cooled)., NEMA 184JM Frame Electric.

Product Specs :

Stainless Steel Motor Shaft and Hardware

NEMA TEFC Single and Three Phase Motors, Depending on Model

Optional Mounting Base Available for 182/184/215 JM Frames

Self-cleaning Stainless Steel Impeller

Maximum Working Pressure 150 PSI


Parts and Accessories for AMT model 4240-94


Seal Kit :

Catalog # 4240-300-91, Gasket Viton Subgrp - with Impeller Seal

Price: $ 145.80

Qty :

Can Ship : Same Day (4 in stock)


Impeller :

Catalog # 4240-013-00, Impeller Xss 7.5HP Mbv to -01

Price: $ 513.54

Qty :

Can Ship : 2 Weeks (0 in stock)


Casing frozen or cracked ? New Pump Casing :

Catalog # 4240-004-94, Casing Xnb 2X1.5, Cast Bronze, with 2 inch x 1-1/2 inch NPT Ports

Price: $ 1388.34

Qty :

Can Ship : 2 Weeks (0 in stock)


Motor :

Catalog # 1627-353-00, Motor, 7-1/2 Horsepower, 3450 RPM, Volts, 3 Phase, TEFC Totally Enclosed Fan Cooled, 50/60 Hz Premium Efficient, Nema 184JM Frame, replacement electric motor only (pump is not included)

Price: $ 1360.80

Qty :

Can Ship : 2 Weeks (0 in stock)

Applications

The AMT 424094 Heavy Duty Solids Handling End Suction Centrifugal pumps are suited for liquid and chemical transfer, heating and cooling, recirculation, booster service, dirty water and other industrial applications. Stainless steel units are especially effective in applications where rust and/or corrosion can develop in systems. Semiopen impeller features selfcleaning ability that makes the unit useful in applications involving up to 1/8 Inch diameter solids and muddy or dirty liquids, as well as clean, clear fluids. Discharge position can be adjusted in 90 degrees increments with vent and drain plugs for all positions. Type 21 mechanical seal and Oring casing seal. Pumps are close coupled to Totally Enclosed Fan Cooled motors.
