AMT # 3892-98 Stainless Steel Chemical Pump and Motor 3/4 HP

AMT Pump 3892-98

AMT # 3892-98

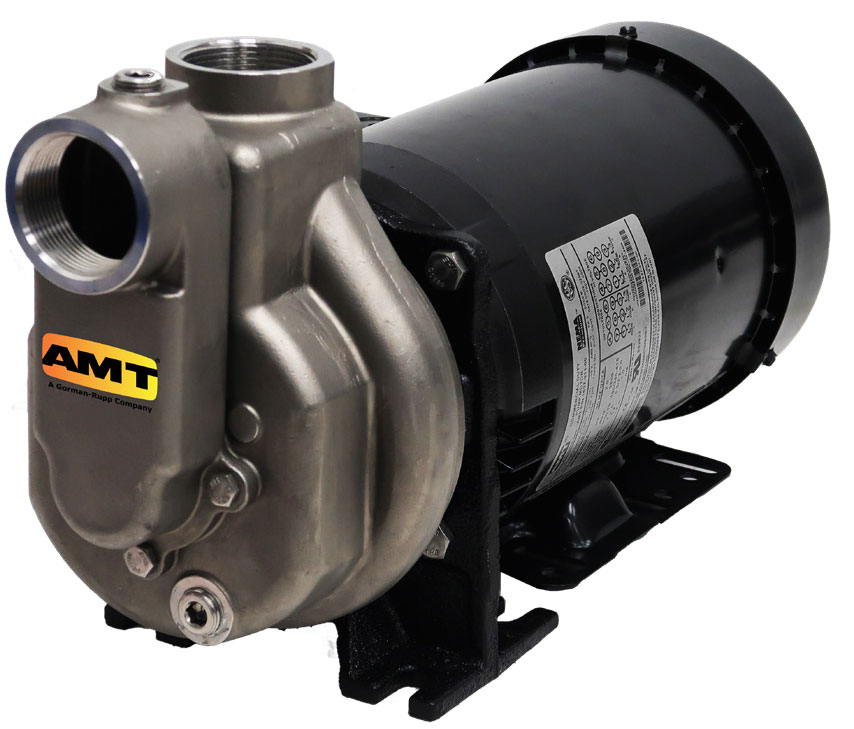

AMT catalog # 3892-98, Stainless Steel Chemical Pump and Motor unit. Stn. Steel Construction. Pump is Close Coupled to a 3/4 Horsepower, 230/460 Volts, Three Phase, TEFC (Totally Enclosed Fan Cooled), NEMA 56J Frame Electric Motor. 1-1/2 inch x 1-1/2 inch NPT Ports.

Price : $ 1419.55

Qty :

4 Weeks (out of stock)

Click Here for PARTS



Product Information :

The AMT 3892-98 is a Stainless Steel Chemical Pump and Motor unit with a Teflon/SS Shaft Seal, 1-1/2 inch x 1-1/2 inch NPT Ports, coupled to a 3/4 Horsepower, 230/460 Volts, TEFC Totally Enclosed Fan Cooled, NEMA 56J frame electric Motor. Stainless steel pumps will handle many acids, alkalis, caustics, solvents, brines and other fluids compatible with 300 series stainless steel body and impeller, and Teflon mechanical seal (comprised of ceramic seat, carbon head and 316 stainless steel spring). Handle liquids from 40 degrees to 250 degrees F (4 degrees to 121 degrees C). These self-priming centrifugal pumps are used for continuous transfer pumping of chemicals from tanks and sumps, and in chemical process and batch lines, waste water treatment and agricultural pumping applications. Pumps self-prime (after filling pump casing) to 6 feet suction lift and will handle liquids with entrapped gases. Maximum viscosity is 100 SSU. Casing working pressure to 75 psi (517 kPa). For use with nonflammable, nonabrasive liquids compatible with pump component materials. All units are for use with non-flammable, non-abrasive liquids compatible with pump component materials.

Features :

Pump Body:
Stn. Steel
Shaft Seal:
Teflon/SS Shaft Seal
Port Size:
1-1/2 inch x 1-1/2 inch NPT Ports.
Motor Specs :
3/4 Horsepower, 230/460 Volts, Three Phase, TEFC (Totally Enclosed Fan Cooled)., NEMA 56J Frame Electric.

Parts and Accessories for AMT model 3892-98


Impeller :

Catalog # 2105-006-01, Impeller Xss 0.56HP 3PH Mach

Price: $ 102.60

Qty :

Can Ship : Same Day (1 in stock)


Shaft Seal :

Catalog # 1641-162-91, Mechanical Seal, Teflon, Type 9A, size 3/4 Inch

Price: $ 1406.70

Qty :

Can Ship : Same Day (1 in stock)


Motor :

Catalog # 1626-308-00, Motor, 3/4 Horsepower, Volts, 3 Phase, TEFC Totally Enclosed Fan Cooled, 60/50 Hz 56J, Nema 56J Frame, replacement electric motor only (pump is not included)

Price: $ 513.54

Qty :

Can Ship : 2 Weeks (0 in stock)

Applications

The AMT 389298 SelfPriming 300 Series Centrifugal pumps are designed for a wide range of applications including chemical processes, waste water treatment and pumping agriculture fertilizers/fumigants. All models are equipped with Totally Enclosed Fan Cooled motors. Pumps are self priming to 6 feet. Pumps are designed to handle liquids with specific gravities up to 1.3 and viscosities to 100 SSU.
