AMT # 3890-97 Bronze Chemical Pump and Motor 3/4 HP

AMT Pump 3890-97

AMT # 3890-97

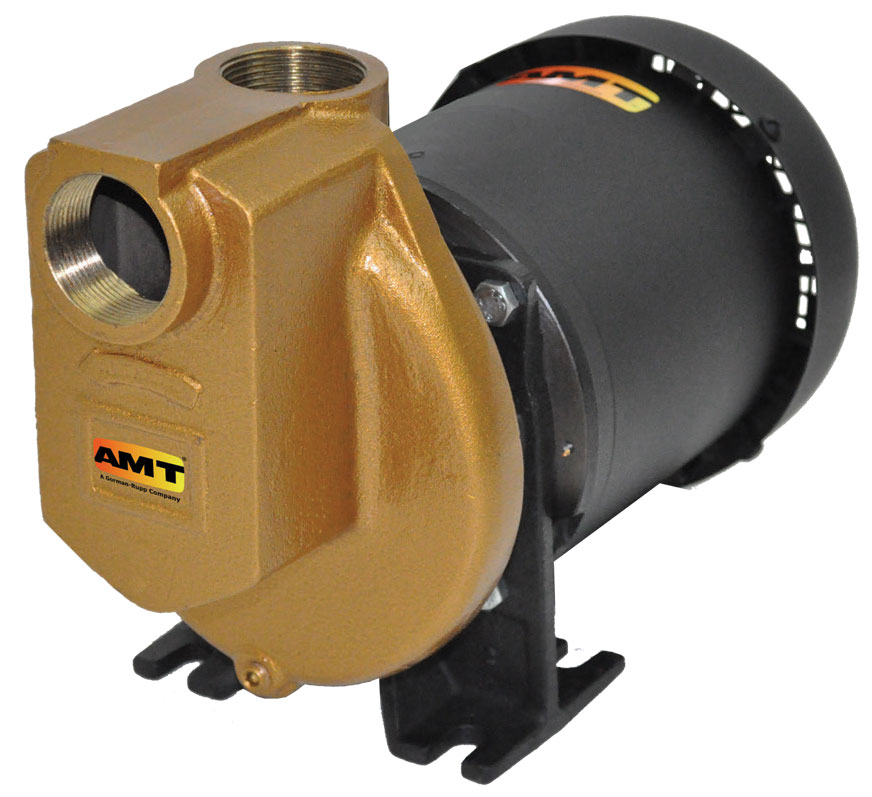

AMT catalog # 3890-97, Bronze Chemical Pump and Motor unit. Bronze Construction. Pump is Close Coupled to a 3/4 Horsepower, 115/230 Volts, Single Phase, TEFC (Totally Enclosed Fan Cooled), NEMA 56J Frame Electric Motor. 1-1/2 inch x 1-1/2 inch NPT Ports.

Price : $ 1108.23

Qty :

4 Weeks (out of stock)

Click Here for PARTS



Product Information :

The AMT 3890-97 is a Bronze Chemical Pump and Motor unit with a Viton/SS Shaft Seal, 1-1/2 inch x 1-1/2 inch NPT Ports, coupled to a 3/4 Horsepower, 115/230 Volts, TEFC Totally Enclosed Fan Cooled, NEMA 56J frame electric Motor. Bronze units handle many acids and organic material compatible with bronze body, stainless steel impeller, and Viton mechanical seal (comprised of ceramic seat, carbon head and stainless steel spring). Handle liquids from 40 degrees to 200 degrees F (4 degrees to 93 degrees C). These self-priming centrifugal pumps are used for continuous transfer pumping of chemicals from tanks and sumps, and in chemical process and batch lines, waste water treatment and agricultural pumping applications. Pumps self-prime (after filling pump casing) to 6 feet suction lift and will handle liquids with entrapped gases. Maximum viscosity is 100 SSU. Casing working pressure to 75 psi (517 kPa). For use with nonflammable, nonabrasive liquids compatible with pump component materials. All units are for use with non-flammable, non-abrasive liquids compatible with pump component materials.

Features :

Pump Body:
Bronze
Shaft Seal:
Viton/SS Shaft Seal
Port Size:
1-1/2 inch x 1-1/2 inch NPT Ports.
Motor Specs :
3/4 Horsepower, 115/230 Volts, Single Phase, TEFC (Totally Enclosed Fan Cooled)., NEMA 56J Frame Electric.

Parts and Accessories for AMT model 3890-97


Impeller :

Catalog # 2105-006-01, Impeller Xss 0.56HP 3PH Mach

Price: $ 102.60

Qty :

Can Ship : Same Day (1 in stock)


Shaft Seal :

Catalog # 1641-162-90, Mechanical Seal, Viton, Type 6A, size 3/4 Inch

Price: $ 63.45

Qty :

Can Ship : Same Day (3 in stock)


Motor :

Catalog # 1626-302-00, Motor, 3/4 Horsepower, 1 Phase, TEFC Totally Enclosed Fan Cooled, 60/50 Hz, Nema 56J Frame, replacement electric jet pump motor only (pump is not included)

Price: $ 542.70

Qty :

Can Ship : Same Day (1 in stock)

Applications

The AMT 389097 SelfPriming 300 Series Centrifugal pumps are designed for a wide range of applications including chemical processes, waste water treatment and pumping agriculture fertilizers/fumigants. All models are equipped with Totally Enclosed Fan Cooled motors. Pumps are self priming to 6 feet. Pumps are designed to handle liquids with specific gravities up to 1.3 and viscosities to 100 SSU.
