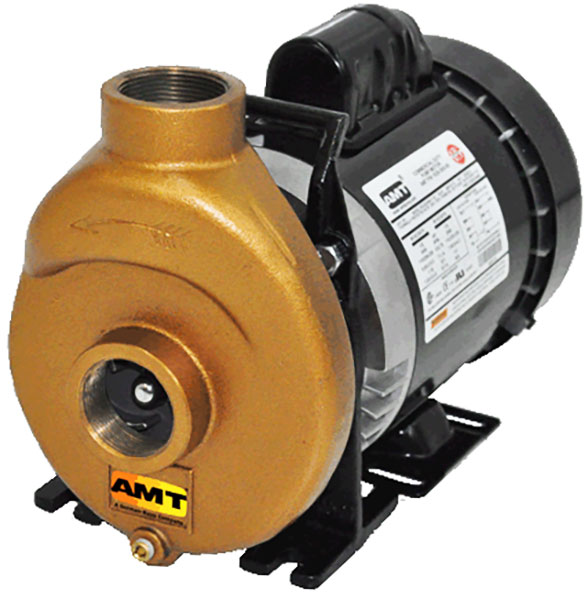

AMT # 388H-97 Bronze Inline Centrifugal Pump and Motor 1 HP

AMT Pump 388H-97

AMT # 388H-97

AMT catalog # 388H-97, Bronze Inline Centrifugal Pump and Motor unit. Bronze Construction with Stainless Steel Impeller and Buna-N/SS Shaft Seal. Pump is Close Coupled to a 1 Horsepower, 115/208-230 Volts, Single Phase, TEFC (Totally Enclosed Fan Cooled), NEMA 56J Frame Electric Motor.

Price : $ 848.17

Qty :

Same Day (2 in stock)

Click Here for PARTS



Product Information :

The AMT 388H-97 is a Bronze Inline Centrifugal Pump and Motor unit with a Stainless Steel Impeller, Buna-N/SS Shaft Seal, coupled to a 1 Horsepower, 115/208-230 Volts, TEFC Totally Enclosed Fan Cooled, NEMA 56J frame electric Motor. These bronze centrifugal pumps are designed for medium volume liquid handling compatible with all pump component materials. Handles liquids from 40̊ to 180̊ F (4̊ to 82̊ C). For use with nonflammable, non-abrasive liquids compatible with pump component materials.

Pumps are not self-priming and require flooded suction.

Features :

Pump Body:
Bronze
Impeller:
Stainless Steel
Shaft Seal:
Buna-N/SS Shaft Seal
Motor Specs :
1 Horsepower, 115/208-230 Volts, Single Phase, TEFC (Totally Enclosed Fan Cooled)., NEMA 56J Frame Electric.

Product Specs :

Bronze Construction

Buna-N Mechanical Seal and O-Ring

1-1/2 Inch x 1-1/2 Inch NPT Thread

Maximum Working Pressure 75 PSI

Maximum Temperature 180 degrees F

Maximum Head 62 Ft.

Maximum Solids Handling Capacity: 1/8 Inch Diameter

Self-cleaning Stainless Steel Impeller

Pull-from-Rear Design for Easy Servicing Without Removing Piping

Maximum 1/8 Inch Diameter Solids Handling


Parts and Accessories for AMT model 388H-97


Impeller :

Catalog # 3880-012-98, 3880 Impeller 1HP 3PH Xss, Stainless Steel

Price: $ 121.50

Qty :

Can Ship : Same Day (2 in stock)


Shaft Seal :

Catalog # 1640-161-90, Mechanical Seal, Buna-N/Carbon/Ceramic, Type 16, size 5/8 Inch

Price: $ 24.30

Qty :

Can Ship : Same Day (6 in stock)


Casing frozen or cracked ? New Pump Casing :

Catalog # 3880-003-97, Casing 1.5 Inch NPT X 1.5 Inch NPT Xb, Bronze

Price: $ 534.60

Qty :

Can Ship : Same Day (2 in stock)


Motor :

Catalog # 1626-303-00, Motor, 1 Horsepower, 1 Phase, TEFC Totally Enclosed Fan Cooled, 60/50 Hz 56J, Nema 56J Frame, replacement electric jet pump motor only (pump is not included)

Price: $ 529.74

Qty :

Can Ship : Same Day (2 in stock)


Other Parts :

Catalog # 2104-004-00, 245 O-Ring Buna N

Price: $ 9.72

Qty :

Can Ship : Same Day (2 in stock)

Applications

The AMT 388H97 Bronze Inline Centrifugal pumps are designed for use with most gravity fed service applications requiring liquid transfer. All models are fitted with a selfcleaning stainless steel impeller for maximum 1/8 Inch diameter solids handling. Units feature pullfromrear design for easy servicing without removing piping.
