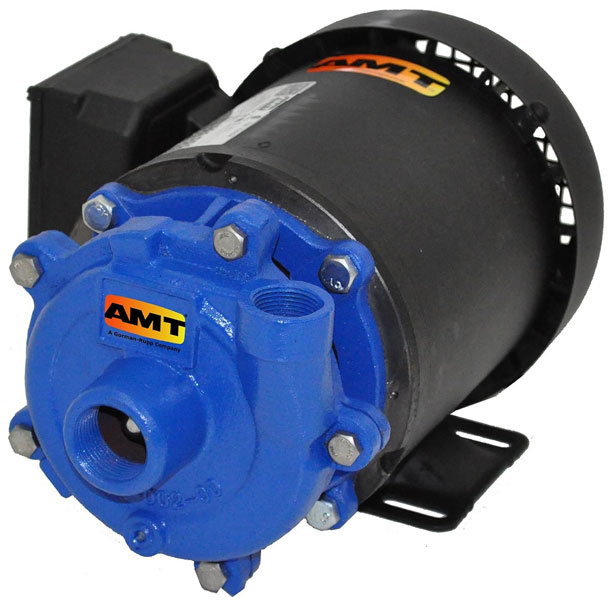

AMT # 369C-95 Cast Iron Centrifugal Pump and Motor 1 HP

The AMT 369C-95 is a Cast Iron Centrifugal Pump and Motor unit with a Buna-N Shaft Seal, 1-1/4 inch Inlet x 1 inch Outlet NPT Ports, coupled to a 1 Horsepower, 115/230 Volts, TEFC Totally Enclosed Fan Cooled, NEMA 56J frame electric Motor. Pump construction is Investment Cast Iron casing and adapter. Cast 300 Series Stainless Steel impeller. Buna N mechanical shaft seal with carbon and ceramic wear faces. O-ring casing seal. Handles liquids from 40 to 180 F (4 to 82 C). These pumps are non-self-priming (gravity feed) units designed to handle liquid transfer, heating and cooling applications, where no suction lift is required. All models feature semi-open clog-resistant impellers and continuous duty, 3450 RPM, 56J frame motors. Discharge port can be rotated in 90 degrees increments to accommodate specific applications. Casing working pressure to 75 psi (517 kPa). These are manual units, no controls are supplied. For use with nonflammable, nonabrasive liquids compatible with pump component materials.

Pumps are not self-priming and require flooded suction.
