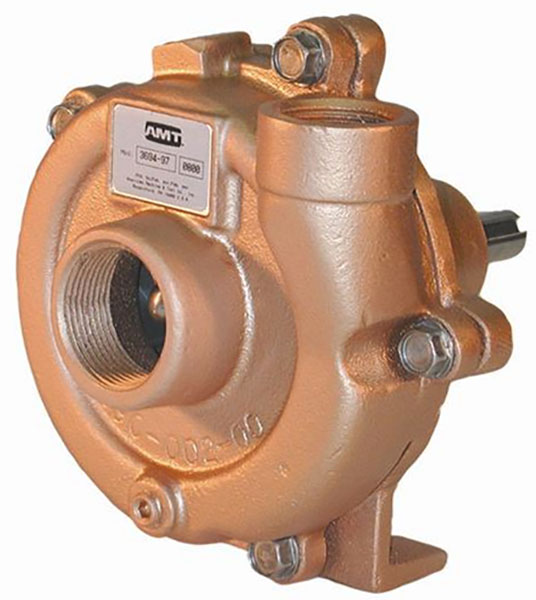

AMT catalog # 3694-97, Bronze Pedestal Pump End Only. Bronze Construction. 1-1/4 inch x 1 inch NPT Ports.
Price : $ 570.76
The AMT 3694-97 is a Bronze Pedestal Pump with a Viton/SS Shaft Seal, 1-1/4 inch x 1 inch NPT Ports, bare shafted pedestal pump end only without a Motor. Pump construction is cast bronze casing with cast 316 stainless steel impeller and pedestal. Includes shaft seal of stainless steel, carbon, ceramic and Viton elastomers. Handle liquids from 40 to 200 F (4 to 93 C). These pumps are for continuous duty, low pressure applications that do not require self-priming. Discharge port rotates 360 degrees in 90 degrees increments. Pumps incorporate a mechanical shaft seal and O-ring casing seal. All units for use with nonflammable, non-abrasive liquids compatible with pump component materials.
Maximum 4000 rpm
Catalog # 3690-010-09, Impeller Xss 1.50HPODP 3PH Mach, 6A
Price: $ 145.80
Shaft Seal :
Catalog # 1640-161-95, Mechanical Seal, Viton, Type 6A, size 5/8 Inch
Price: $ 34.02
Casing frozen or cracked ? New Pump Casing :
Catalog # 3690-003-09, Casing Xb 1 1/4 X 1 Mach, Bronze
Price: $ 364.50
The AMT 369497 Straight Centrifugal Pedestal pumps are designed for OEM, Industrial/ Commercial and processing applications including circulation, chemical processing, liquid transfer, heating and cooling. These units are available in a variety of construction and seal materials. Pullfromtherear design permits easy servicing without disturbing any piping. Pedestals feature CNC machined shafts with sealed ball bearings.
