AMT # 3682-98 Stainless Steel Centrifugal Pedestal Pump

AMT Pump 3682-98

AMT # 3682-98

AMT catalog # 3682-98, Stainless Steel Centrifugal Pedestal Pump End Only. Stainless Steel Construction. 3/4 inch Inlet x 1/2 inch Outlet NPT Ports.

Price : $ 484.61

Qty :

4 Weeks (out of stock)

Click Here for PARTS



Product Information :

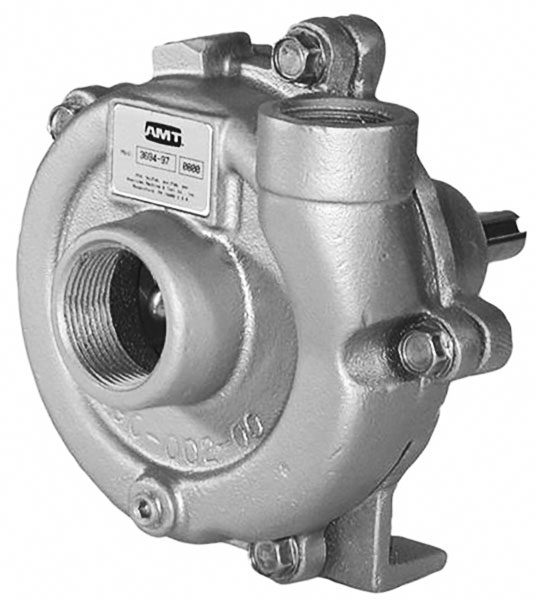

The AMT 3682-98 is a Stainless Steel Centrifugal Pedestal Pump with a Viton/SS Shaft Seal, 3/4 inch Inlet x 1/2 inch Outlet NPT Ports, bare shafted pedestal pump end only without a Motor. Pump construction is cast 316 stainless steel with shaft seal of stainless steel, carbon, ceramic, and Viton elastomers. Handle liquids from 40 to 200 F (4 to 93 C). These pumps are for continuous duty, low pressure applications that do not require self-priming. Discharge port rotates 360 degrees in 90 degrees increments. Pumps incorporate a mechanical shaft seal and O-ring casing seal. All units for use with nonflammable, non-abrasive liquids compatible with pump component materials.

Features :

Pump Body:
Stainless Steel
Shaft Seal:
Viton/SS Shaft Seal
Port Size:
3/4 inch Inlet x 1/2 inch Outlet NPT Ports.

Product Specs :

Maximum 4000 rpm


Parts and Accessories for AMT model 3682-98


Impeller :

Catalog # 3680-010-09, Impeller Xss 0.33HPODP 3PH Mach, 6A

Price: $ 121.50

Qty :

Can Ship : 2 Weeks (0 in stock)


Shaft Seal :

Catalog # 1640-161-95, Mechanical Seal, Viton, Type 6A, size 5/8 Inch

Price: $ 34.02

Qty :

Can Ship : 2 Weeks (0 in stock)


Casing frozen or cracked ? New Pump Casing :

Catalog # 3680-001-09, Casing Xss 3/4X1/2 Mach, Stainless Steel, with 3/4 inch Inlet x 1/2 inch Outlet NPT Ports

Price: $ 330.48

Qty :

Can Ship : 2 Weeks (0 in stock)

Applications

The AMT 368298 Straight Centrifugal Pedestal pumps are designed for OEM, Industrial/ Commercial and processing applications including circulation, chemical processing, liquid transfer, heating and cooling. These units are available in a variety of construction and seal materials. Pullfromtherear design permits easy servicing without disturbing any piping. Pedestals feature CNC machined shafts with sealed ball bearings.
