AMT # 3682-97 Bronze Pedestal Pump

AMT Pump 3682-97

AMT # 3682-97

AMT catalog # 3682-97, Bronze Pedestal Pump End Only. Bronze Construction. 3/4 inch Inlet x 1/2 inch Outlet NPT Ports.

Price : $ 493.42

Qty :

4 Weeks (out of stock)

Click Here for PARTS



Product Information :

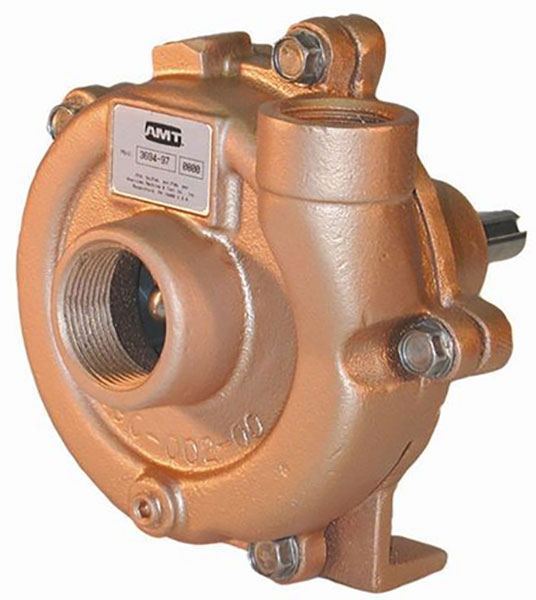

The AMT 3682-97 is a Bronze Pedestal Pump with a Viton/SS Shaft Seal, 3/4 inch Inlet x 1/2 inch Outlet NPT Ports, bare shafted pedestal pump end only without a Motor. Pump construction is cast bronze casing with cast 316 stainless steel impeller and pedestal. Includes shaft seal of stainless steel, carbon, ceramic and Viton elastomers. Handle liquids from 40 to 200 F (4 to 93 C). These pumps are for continuous duty, low pressure applications that do not require self-priming. Discharge port rotates 360 degrees in 90 degrees increments. Pumps incorporate a mechanical shaft seal and O-ring casing seal. All units for use with nonflammable, non-abrasive liquids compatible with pump component materials.

Features :

Pump Body:
Bronze
Shaft Seal:
Viton/SS Shaft Seal
Port Size:
3/4 inch Inlet x 1/2 inch Outlet NPT Ports.

Product Specs :

Maximum 4000 rpm


Parts and Accessories for AMT model 3682-97


Impeller :

Catalog # 3680-010-09, Impeller Xss 0.33HPODP 3PH Mach, 6A

Price: $ 121.50

Qty :

Can Ship : 2 Weeks (0 in stock)


Shaft Seal :

Catalog # 1640-161-95, Mechanical Seal, Viton, Type 6A, size 5/8 Inch

Price: $ 34.02

Qty :

Can Ship : 2 Weeks (0 in stock)


Casing frozen or cracked ? New Pump Casing :

Catalog # 3680-004-09, Casing Xnb 3/4 X 1/2 Mach, Bronze

Price: $ 332.10

Qty :

Can Ship : 2 Weeks (0 in stock)

Applications

The AMT 368297 Straight Centrifugal Pedestal pumps are designed for OEM, Industrial/ Commercial and processing applications including circulation, chemical processing, liquid transfer, heating and cooling. These units are available in a variety of construction and seal materials. Pullfromtherear design permits easy servicing without disturbing any piping. Pedestals feature CNC machined shafts with sealed ball bearings.
