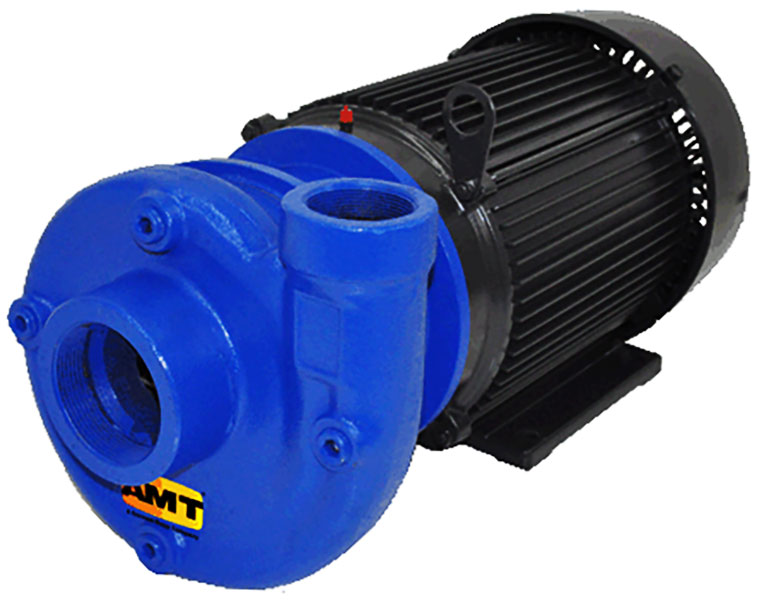

AMT catalog # 3156-95, Cast Iron Heavy Duty Centrifugal Pump and Motor unit. Cast Iron Construction. Pump is Close Coupled to a 2 Horsepower, 230 Volts, Single Phase, TEFC (Totally Enclosed Fan Cooled), NEMA 56J Frame Electric Motor. 2 inch x 1-1/2 inch NPT Ports.
Price : $ 908.51
The AMT 3156-95 is a Cast Iron Heavy Duty Centrifugal Pump and Motor unit with a Buna-N/SS Shaft Seal, 2 inch x 1-1/2 inch NPT Ports, coupled to a 2 Horsepower, 230 Volts, TEFC Totally Enclosed Fan Cooled, NEMA 56J frame electric Motor. Buna seals handle liquids from 40 degrees to 180 degrees F (4 degrees to 82 degrees C). These non self-priming centrifugal pumps are intended for liquid transfer, heating and cooling circulation, booster service and other industrial applications where no suction lift is required. All models feature a semi-open clog resistant impeller and a pull-from-the-rear design for easy servicing. A dual volute casing is used on all models except 4240. A mechanical seal (comprised of carbon, ceramic and stainless steel components) isolates motor shaft from liquid being pumped. Discharge port on pump casing can be rotated in 90 degrees increments with vent and drain plugs for all positions. Maximum ambient temperature 104 degrees F (40 degrees C). Casing working pressure to 100 psi (689 kPa). These are manual units, no controls are supplied. For use with nonflammable, non-abrasive liquids compatible with pump component materials.
Pumps are not self-priming and require flooded suction.
Stainless Steel Motor Shaft and Hardware
NEMA TEFC Single and Three Phase Motors, Depending on Model
Optional Mounting Base Available for 182/184/215 JM Frames
Self-cleaning Stainless Steel Impeller
Maximum Working Pressure 150 PSI
Seal Kit :
Catalog # 3156-300-94, Seal Rebuild Kit Buna/Cer 56J - all Seal
Price: $ 45.36
Casing frozen or cracked ? New Pump Casing :
Catalog # 3156-001-95, 3156 Casing Xci- 2X1-1/2 Blank, Cast Iron, with 2 inch x 1-1/2 inch NPT Ports
Price: $ 660.96
Catalog # 1626-305-00, Motor, 2 Horsepower, 1 Phase, TEFC Totally Enclosed Fan Cooled, 60/50 Hz 56J, Nema 56J Frame, replacement electric jet pump motor only (pump is not included)
Price: $ 678.78
The AMT 315695 Heavy Duty Solids Handling End Suction Centrifugal pumps are suited for liquid and chemical transfer, heating and cooling, recirculation, booster service, dirty water and other industrial applications. Stainless steel units are especially effective in applications where rust and/or corrosion can develop in systems. Semiopen impeller features selfcleaning ability that makes the unit useful in applications involving up to 1/8 Inch diameter solids and muddy or dirty liquids, as well as clean, clear fluids. Discharge position can be adjusted in 90 degrees increments with vent and drain plugs for all positions. Type 21 mechanical seal and Oring casing seal. Pumps are close coupled to Totally Enclosed Fan Cooled motors.
