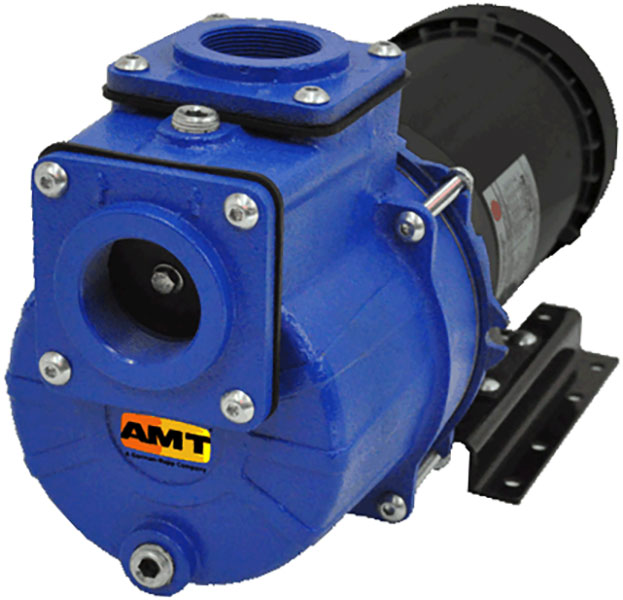

AMT # 2SP30C-3P Cast Iron Self-Priming Centrifugal Chemical Pump and Motor 3 HP

AMT Pump 2SP30C-3P

AMT # 2SP30C-3P

AMT catalog # 2SP30C-3P, Cast Iron Self-Priming Centrifugal Chemical Pump and Motor unit. Cast Iron Construction. Pump is Close Coupled to a 3 Horsepower, 208-230/460 Volts, Three Phase, TEFC (Totally Enclosed Fan Cooled), NEMA 56J Frame Electric Motor..

Price : $ 979.00

Qty :

4 Weeks (out of stock)

Click Here for PARTS



Product Information :

The AMT 2SP30C-3P is a Cast Iron Self-Priming Centrifugal Chemical Pump and Motor unit with a EPDM/EPR Shaft Seal, coupled to a 3 Horsepower, 208-230/460 Volts, TEFC Totally Enclosed Fan Cooled, NEMA 56J frame electric Motor. These self-priming (to 20 ft. lift) chemical pumps are equipped with a check valve to assist in positive priming, a self-cleaning impeller, a EPDM/EPR mechanical seal to prevent leakage, and a continuous duty motor. Pumps are designed for higher pressure, high volume, liquid transfer applications such as chemical processing and general de-watering applications. Casing working pressure to 150 psi (1034 kPa). Handles fluids from 40 degrees to 180 degrees F (4 degrees to 82 degrees C). For use with nonflammable, nonabrasive liquids compatible with pump component materials.

Features :

Pump Body:
Cast Iron
Shaft Seal:
EPDM/EPR Shaft Seal
Motor Specs :
3 Horsepower, 208-230/460 Volts, Three Phase, TEFC (Totally Enclosed Fan Cooled)., NEMA 56J Frame Electric.

Product Specs :

Cast iron construction with epdm/epr seals

Easy cleanout pull from rear design

Self-priming up to 20 feet with built-in check valve

Self-cleaning, clog resistant impeller

Motors feature 303 stainless steel shaft


Parts and Accessories for AMT model 2SP30C-3P


Impeller :

Catalog # 1A3D-010-95, Impeller XCI 3HP 56 Frame Sub Assembly

Price: $ 113.40

Qty :

Can Ship : 2 Weeks (0 in stock)


Shaft Seal :

Catalog # 1641-161-91, 0.63 Seal FS16 Ept/Epr/Car/Cer

Price: $ 59.94

Qty :

Can Ship : 2 Weeks (0 in stock)


Casing frozen or cracked ? New Pump Casing :

Catalog # 1A31-001-95, Sp Casing Xci, Flanges Req'd, Kit, Cast Iron

Price: $ 324.00

Qty :

Can Ship : 2 Weeks (0 in stock)


Other Parts :

Catalog # 1A31-306-90, Epdm/Epr O-Ring/Gasket Kit

Price: $ 29.16

Qty :

Can Ship : 2 Weeks (0 in stock)

Applications

The AMT 2SP30C3P SelfPriming Centrifugal pumps are designed for industrial and commercial applications requiring high volume liquid transfer, waste water drainage and chemical processing. These pumps feature a selfcleaning clog resistant impeller capable of handling up to 3/8" diameter semisolid and EPDM/EPR seals for liquid chemical transfer with specific gravities up to 1.3. Builtin check valve enables consistent selfpriming to 20 feet. Dual volute design reduces radial load on motor. Pumps feature Dual cycle 50/60 Hz TEFC motors.
