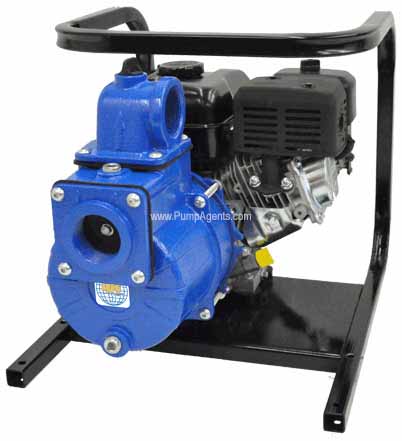

AMT # 2G4XACR Cast Iron Solids Handling Pump and Engine 4 HP



AMT catalog # 2G4XACR, Solids Handling Pump and Motor unit. Cast Iron Construction with Cast Iron Impeller and EPDM/EPR Shaft Seal. Pump is Close Coupled to a 4 Horsepower, Briggs & Stratton OHV Engine Motor..

Price : $ 705.86

Qty :

4 Weeks (out of stock)

Click Here for PARTS


Product Information :

The AMT 2G4XACR is a Cast Iron Solids Handling Pump and Engine unit with a Cast Iron Impeller, EPDM/EPR Shaft Seal, coupled to a 4 Horsepower, Briggs and Stratton OHV Engine. AMT engine driven pumps are commercial duty, centrifugal, self-priming (to 20 ft. vertical lift after initially filling casing with liquid), portable units. Pumps are equipped with industry standard mechanical shaft seals. Iron suction and discharge manifolds are standard NPT threads for connection to swivel hose fitting with gasket using pipe nipple provided or standard NPT pipe fittings. Discharge manifold can be rotated 180˚ (in 90˚ increments); left side discharge, front discharge or right side discharge. Pump components will handle liquids with a temperature range of 40˚ to 200˚F (4˚ to 93˚ C). Pump only nonflammable liquids compatible with pump component materials

Features :

Pump Body:
Cast Iron
Cast Iron
Shaft Seal:
EPDM/EPR Shaft Seal
Motor Specs :
4 Horsepower, Briggs & Stratton OHV Engine.

Product Specs :

Simple Four Bolt Design for Easy Cleanout, Tool Included

EPDM/EPR Mechanical Seals, O-Rings and Gaskets

Discharge Ports Rotate in 90 degrees Increments

Heavy Duty Cast Iron Construction Ensures Durability for Severe Service Conditions

O-Ring Casing Seal for Ease of Service and Cleaning

Maximum Working Pressure 75 PSI

Maximum Temperature 200 degrees F

Dual Volute Design for Hydraulic Balance

Self-Primes to 10 Feet in 1 Minute with Maximum Suction Lift of 20 Feet

Heavy Duty Steel Roll Frame for Portability

Parts and Accessories for AMT model 2G4XACR

Impeller :

Catalog # 2G4X-010-95, Impeller XCI 3HP Class 3/4KYD Module Subgroup/Kit, Cast Iron

Price: $ 124.74

Qty :

Can Ship : 2 Weeks (0 in stock)

Shaft Seal :

Catalog # 1640-162-93, Mechanical Seal, EPDM, Type 6A, size 3/4 Inch

Price: $ 41.85

Qty :

Can Ship : Same Day (2 in stock)

Casing frozen or cracked ? New Pump Casing :

Catalog # 2G4X-001-95, Casing Xa Kit/Subgroup, Cast Iron

Price: $ 314.28

Qty :

Can Ship : 2 Weeks (0 in stock)

Motor :

Catalog # 1630-009-00, Briggs and Stratton 083132-0242F1.75K - Shaft 550 Series Eng

Price: $ 604.26

Qty :

Can Ship : 2 Weeks (0 in stock)


The AMT 2G4XACR Cast Iron Engine Driven Solids Handling pumps offer an upgraded debris handling capability in wear resistant cast iron construction. Applications include high volume liquid transfer, agriculture/liquid fertilizer, irrigation, commercial draining and construction. All models feature durable all cast iron construction and clogresistant impeller to ensure a long life for the complete pump. Dual volute design reduces radial load on engines. Simple four bolt design for easy cleanout, tool included. EPDM/EPR seal and gaskets for use with many antifreeze, alcohols, ozone, freon, etc. Check your specific chemical for compatibility
