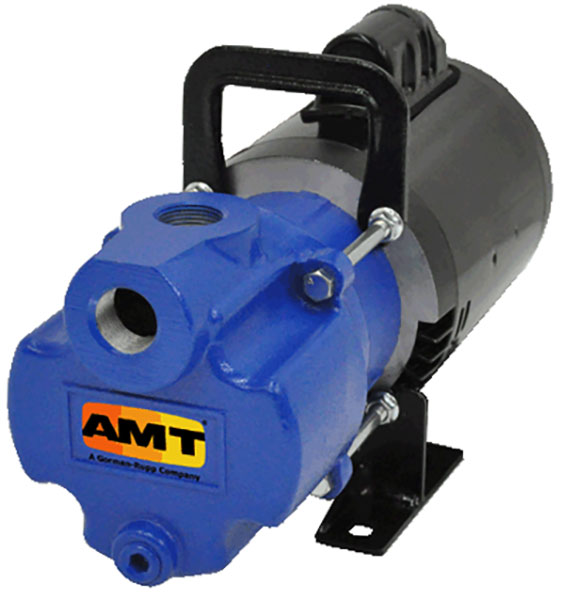

AMT # 2851-96 Aluminum Cast Iron Self-Priming Centrifugal Pump and Motor 1/3 HP

AMT Pump 2851-96

AMT # 2851-96

AMT catalog # 2851-96, Cast Iron Self-Priming Centrifugal Pump and Motor unit. Aluminum Construction. Pump is Close Coupled to a 1/3 Horsepower, 115/230 Volts, ODP (Open Drip Proof), NEMA 56J Frame Electric Motor. 1 inch x 1 inch NPT Ports.

Price : $ 429.78

Qty :

4 Weeks (out of stock)

Click Here for PARTS



Product Information :

The AMT 2851-96 is an Aluminum Cast Iron Self-Priming Centrifugal Pump and Motor unit with a Viton Shaft Seal, 1 inch x 1 inch NPT Ports, coupled to a 1/3 Horsepower, 115/230 Volts, ODP Open Drip Proof, NEMA 56J frame electric Motor. These self-priming (to 15 ft. lift) (to 10 ft. lift on aluminum models) are designed for general purpose liquid transfer. Pumps include a semi-open clog resistant impeller. Handle liquids from 40 degrees to 180 degrees F (4 degrees to 82 degrees C) with Buna N seals and 40 degrees to 200 degrees F (4 degrees to 93 degrees C) with Viton seals. Some units will handle liquid with up to 1.65 specific gravity. For use with non-flammable, non-abrasive liquids compatible with pump component materials.

Features :

Pump Body:
Aluminum
Shaft Seal:
Viton Shaft Seal
Port Size:
1 inch x 1 inch NPT Ports.
Motor Specs :
1/3 Horsepower, 115/230 Volts, ODP (Open Drip Proof)., NEMA 56J Frame Electric.

Product Specs :

Cast iron construction

Buna-n mechanical seal and o-ring

Maximum temperature 180 f

Self-priming to 20 ft.

Self-cleaning, semi-open impeller


Parts and Accessories for AMT model 2851-96


Impeller :

Catalog # 1540-000-01, 285PCEXA Impeller Machined

Price: $ 64.80

Qty :

Can Ship : 2 Weeks (0 in stock)


Shaft Seal :

Catalog # 1640-161-90, Mechanical Seal, Buna-N/Carbon/Ceramic, Type 16, size 5/8 Inch

Price: $ 24.30

Qty :

Can Ship : Same Day (6 in stock)


Casing frozen or cracked ? New Pump Casing :

Catalog # 1519-000-01, 285XA Casing Machined 3 Step 1 Inch, Aluminum

Price: $ 272.16

Qty :

Can Ship : 2 Weeks (0 in stock)


Motor :

Catalog # 1626-008-00, Motor, 1/3 Horsepower, 1 Phase, ODP Open Drip Proof, 60/50 Hz, Nema 56J Frame, replacement electric jet pump motor only (pump is not included)

Price: $ 304.56

Qty :

Can Ship : 2 Weeks (0 in stock)

Applications

The AMT 285196 SelfPriming Cast Iron Centrifugal pumps are designed for circulating, boosting, washdown, liquid transfer and dewatering applications. Dual volute design reduces radial load on motor. The centerline discharge feature is specifically designed to prevent vapor binding and makes for convenient piping connections. All models are fitted with selfcleaning, semiopen impeller. The units will selfprime to 20 feet. Mounting base features 7/16" mounting holes, which are 6" OC. Builtin carrying handle offers portability.
