Berkeley Pump model B82477 Parts |
|

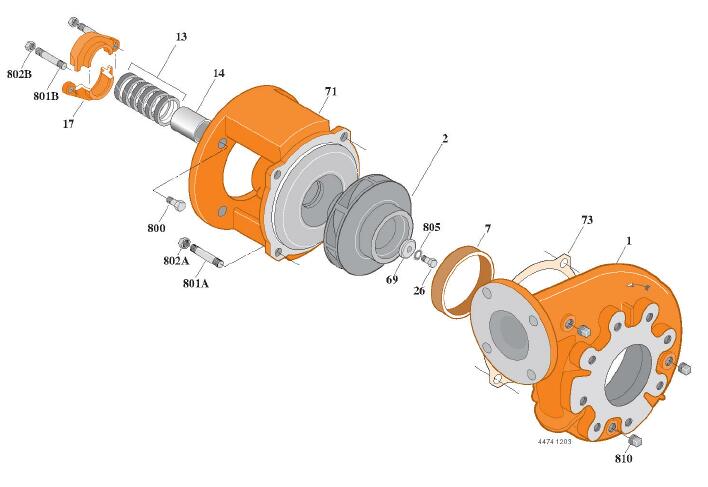

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for Berkeley Pump model # B82477 | |||||||
| Key | SKU | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| 13 | S13470 | Rings, Packing (Set of 6) | $305.15 | 10 in Stock | 1 | ||
| 26 | S23619 | Screw, Impeller 1/2 - 13 x 1 | $17.48 | 1 in Stock | 1 | ||
| 32 | S23677 | Key, 1/4x2-1/4 (See Note) | $26.35 | 1 in Stock | 1 | ||
| 71 | L01951 | Bracket | $1459.45 | 0 in Stock | 1 | ||
| 73 | S04757 | Gasket, Volute | $32.30 | 2 in Stock | 1 | ||
| 800 | S26912 | Capscrew, 1/2 - 13 x 1 (4 Req.) | $10.02 | 1 in Stock | 4 | ||
| 801A | S24043 | Stud, 1/2- 13x1-1/2 (4 Req.) | $21.22 | 1 in Stock | 4 | ||
| 801B | S04441 | Stud, 3/8- 16x3-1/2 (2 Req.) | $48.45 | 1 in Stock | 2 | ||
| 802A | S26460 | Nut, Hex 1/2- 13 (2 Req.) | $13.99 | 1 in Stock | 2 | ||
| 802B | S23343 | Nut, Hex 3/8- 16 (3 Req.) | $13.99 | 1 in Stock | 3 | ||
| 805 | S23038 | Washer, Lock | $7.18 | 1 in Stock | 1 | ||
