Berkeley Pump model B69520 Parts

Parts Table is below the image.
Scroll down for Item Listings and Prices.

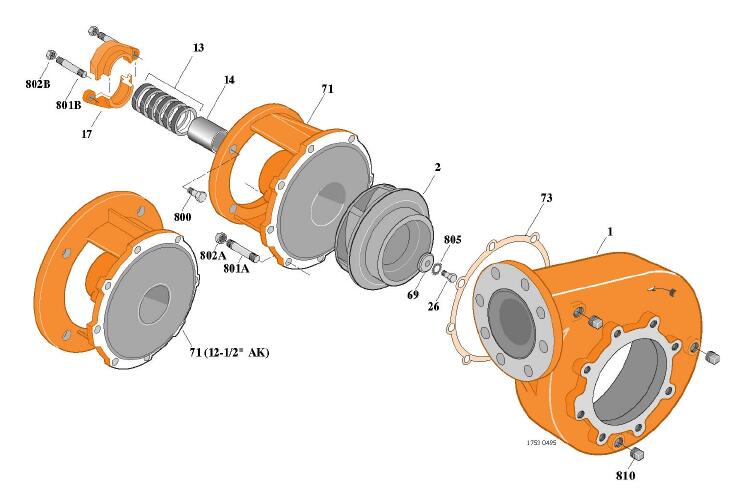

Products in the table are matched to the number on the image using a Item Key.

Go To PARTS TABLE below (click here or scroll down)

View Shopping Cart

Proceed to Checkout

Key	SKU	Description	Price	Stock	Required
Parts List for Berkeley Pump model # B69520
1	H05065	Case, Volute	$4652.90	0 in Stock	1

2	M07722	Impeller, 7.69x8.69 Diameter, for 25 HP / 3 phase pumps.	$2776.10	0 in Stock	1

13	S13470	Rings, Packing (Set of 6)	$305.15	10 in Stock	1

26	S23627	Screw, Impeller 1/2 - 13 x 2	$21.25	1 in Stock	1

32	S23677	Key, 1/4x2-1/4 (See Note)	$26.35	1 in Stock	1

69	S06319	Washer, Impeller	$125.80	1 in Stock	1

73	S05126	Gasket, Volute	$36.55	2 in Stock	1

800	S26916	Capscrew, 1/2- 13 x 1-1/2 (4 Req.)	$13.86	1 in Stock	4

801A	S09942	Stud, 3/8- 16 x 1-3/8 (8 Req.)	$21.22	1 in Stock	8

801B	S08303	Stud, 3/8- 16x4 (2 Req.)	$51.00	1 in Stock	2

802A	S23103	Nut, Hex 3/8- 16 (8 Req.)	$10.02	1 in Stock	8

802B	S23343	Nut, Hex 3/8- 16 (2 Req.)	$13.99	1 in Stock	2

805	S23038	Washer, Lock	$7.18	1 in Stock	1

810	S23717	Plug, Pipe l/2NPT(3Req.)	$2.77	1 in Stock	3
