Series # B53752 Parts
B1-1/2ZPL 10HP 3600RPM 3PH 60HZ 213JP FR

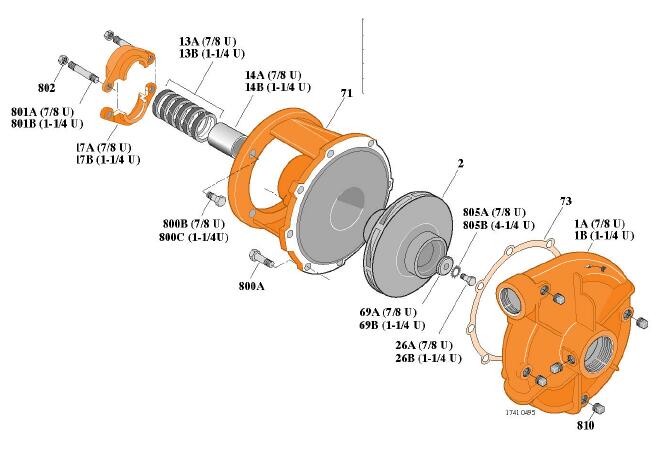

PARTS LIST for Series # B53752 Pump is at the bottom of this page.
Parts can be ordered off of the page by checking the desired checkboxes and submitting the form.

To order parts, Check Off the boxes in the first column for each item you need.
Select the ADD TO ORDER button at the bottom to add to your Order.
Key Description Qty. Part Number Price CAN SHIP

1A Case, Volute 1 L01025 $ 731.00 1 Week
(0 in stock)
IB Case, Volute 1 L03075 $ 731.00 1 Week
(0 in stock)
2 Impeller, 7.88 Diameter, for 10 HP / 3 phase pumps. 1 M07691 $ 487.00 1 Week
(0 in stock)
13A Rings, Packing (Set of 7) 1 S15094 $ 82.00 1 Week
(0 in stock)
13B Rings, Packing (Set of 6) 1 S13470 $ 103.00 1 Week
(0 in stock)
14A Sleeve, Shaft (2 Req.) 2 S00619 $ 68.00 1 Week
(0 in stock)
14B Sleeve, Shaft 1 S05149 $ 92.00 1 Week
(0 in stock)
17A Gland, Packing 1 B82469 $ 111.00 1 Week
(0 in stock)
17B Gland, Packing 1 B82470 $ 119.00 1 Week
(0 in stock)
26A Screw, Impeller 3/8 -16x1 1 S23566 $ 4.00 1 Week
(0 in stock)
26B Screw, Impeller 1/2 - 13 x 1 1 S23619 $ 7.00 1 Week
(0 in stock)
32A Key, 3/16x1-1/4 (See Note) 1 S34383 $ 8.00 1 Week
(0 in stock)
32B Key, 1/4x2/14 (See Note) 1 S23677 $ 10.00 1 Week
(0 in stock)
69A Washer, Impeller 1 S06314 $ 23.00 1 Week
(0 in stock)
69B Washer, Impeller 1 S06317 $ 51.00 1 Week
(0 in stock)
71 Bracket 1 L03827 $ 1160.00 1 Week
(0 in stock)
73 Gasket, Volute 1 S05126 $ 16.00 1 Week
(0 in stock)
800A Capscrew, 3/8 - 1 6 x 1 ( 1 2 Req. ) 1 S26826 $ 2.00 1 Week
(0 in stock)
800B Capscrew, 3/8 - 16 x 1-1/8 (8 Req.) 8 S26827 $ 2.00 1 Week
(0 in stock)
800C Capscrew, 1/2- 13 x 1-1/2 (4 Req.) 4 S26916 $ 5.00 1 Week
(0 in stock)
801A Stud, 3/8- 16x3 (2 Req.) 2 S04439 $ 24.00 1 Week
(0 in stock)
801B Stud, 3/8- 16x4 (2 Req.) 2 S08303 $ 17.00 1 Week
(0 in stock)
802 Nut, Hex 3/8- 16 (2 Req.) 2 S23343 $ 5.00 1 Week
(0 in stock)
805A Washer, Lock 1 S23036 $ 2.00 1 Week
(0 in stock)
805B Washer, Lock 1 S23038 $ 2.00 1 Week
(0 in stock)
810 Plug, Pipe l/4NPT(5Req.) 5 S23715 $ 7.00 1 Week
(0 in stock)



NOTES :
