Series # B53697S Parts
B1WP 3HP 3600/60/3 ODP SILICON BRONZE IM

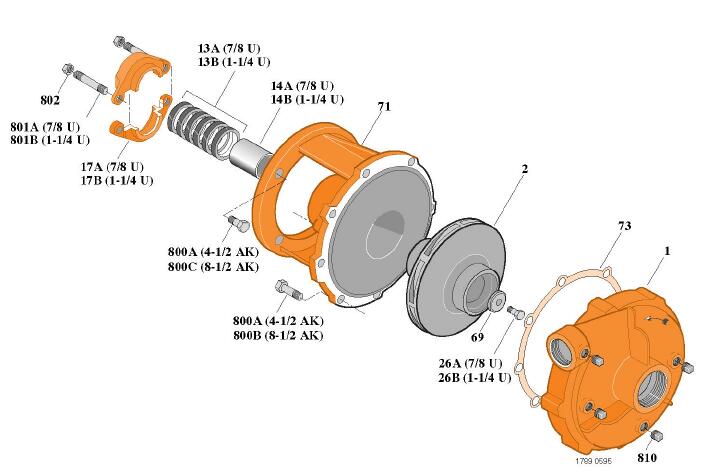

PARTS LIST for Series # B53697S Pump is at the bottom of this page.
Parts can be ordered off of the page by checking the desired checkboxes and submitting the form.

To order parts, Check Off the boxes in the first column for each item you need.
Select the ADD TO ORDER button at the bottom to add to your Order.
Key Description Qty. Part Number Price CAN SHIP

1 Case, Volute 1 L04022 $ 572.00 1 Week
(0 in stock)
2 Impeller, 5.75 Diameter, for 3 HP / 3 phase pumps. 1 H05454 $ 697.00 1 Week
(0 in stock)
13A Rings, Packing (Set of 7) 1 S15094 $ 82.00 1 Week
(0 in stock)
13B Rings, Packing (Set of 6) 1 S13470 $ 103.00 1 Week
(0 in stock)
14A Sleeve, Shaft (2 Req.) 2 S00619 $ 68.00 1 Week
(0 in stock)
14B Sleeve, Shaft 1 S05149 $ 92.00 1 Week
(0 in stock)
17A Gland, Packing 1 B82469 $ 111.00 1 Week
(0 in stock)
17B Gland, Packing 1 B82470 $ 119.00 1 Week
(0 in stock)
26A Screw, Impeller 3/8 -16x1 1 S23566 $ 4.00 1 Week
(0 in stock)
26B Screw, Impeller 1/2 - 13 x 1-1/4 1 S23621 $ 7.00 1 Week
(0 in stock)
32 Key, 3/16x1-1/4 (See Note) 1 S34383 $ 8.00 1 Week
(0 in stock)
69 Washer, Impeller 1 S16239 $ 8.00 1 Week
(0 in stock)
71 Bracket 1 H00950 $ 1008.00 1 Week
(0 in stock)
73 Gasket, Volute 1 S05126 $ 16.00 1 Week
(0 in stock)
800A Capscrew, 3/8 - 1 6 x 1 ( 1 2 Req. ) 1 S26826 $ 2.00 1 Week
(0 in stock)
800B Capscrew, 3/8 - 16 x 1-1/8 (8 Req.) 8 S26827 $ 2.00 1 Week
(0 in stock)
800C Capscrew, 1/2- 13 x 1-1/2 (4 Req.) 4 S26916 $ 5.00 1 Week
(0 in stock)
801A Stud, 3/8- 16x3 (2 Req.) 2 S04439 $ 24.00 1 Week
(0 in stock)
801B Stud, 3/8- 16x4 (2 Req.) 2 S08303 $ 17.00 1 Week
(0 in stock)
802 Nut, Hex 3/8- 16 (2 Req.) 2 S23343 $ 5.00 1 Week
(0 in stock)
810 Plug, Pipe l/4NPT(4Req.) 4 S23715 $ 7.00 1 Week
(0 in stock)



NOTES :
