Series # B52296 Parts
B1-1/2ZPH 20HP 3600RPM 3PH 60HZ 254JP/TC

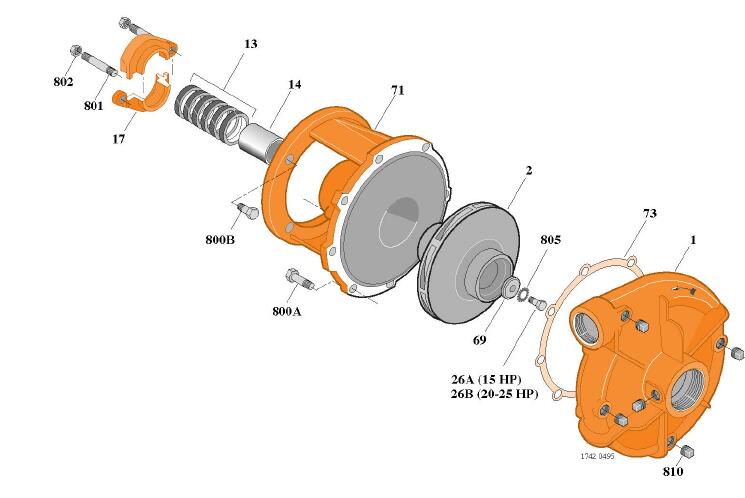

PARTS LIST for Series # B52296 Pump is at the bottom of this page.
Parts can be ordered off of the page by checking the desired checkboxes and submitting the form.

To order parts, Check Off the boxes in the first column for each item you need.
Select the ADD TO ORDER button at the bottom to add to your Order.
Key Description Qty. Part Number Price CAN SHIP

1 Case, Volute 1 L03075 $ 731.00 1 Week
(0 in stock)
2 Impeller, 8.62 Diameter, for 20 HP / 3 phase pumps. 1 M07665 $ 487.00 1 Week
(0 in stock)
13 Rings, Packing (Set of 6) 1 S13470 $ 103.00 1 Week
(0 in stock)
14 Sleeve, Shaft 1 S05149 $ 92.00 1 Week
(0 in stock)
17 Gland, Packing 1 B82470 $ 119.00 1 Week
(0 in stock)
26A Screw, Impeller 1/2 - 13 x 1-1/2 1 S23623 $ 7.00 1 Week
(0 in stock)
26B Screw, Impeller 1/2 - 13 x 1-1/4 1 S23621 $ 7.00 1 Week
(0 in stock)
32 Key, 1/4x2-1/4 (See Note) 1 S23677 $ 10.00 1 Week
(0 in stock)
69 Washer, Impeller 1 S06319 $ 44.00 1 Week
(0 in stock)
71 Bracket 1 L03827 $ 1160.00 1 Week
(0 in stock)
73 Gasket, Volute 1 S05126 $ 16.00 1 Week
(0 in stock)
800A Capscrew, 3/8 - 16 x 1-1/8 (8 Req.) 8 S26827 $ 2.00 1 Week
(0 in stock)
800B Capscrew, 1/2- 13 x 1-1/2 (4 Req.) 4 S26916 $ 5.00 1 Week
(0 in stock)
801 Stud, 3/8- 16x4 (2 Req.) 2 S08303 $ 17.00 1 Week
(0 in stock)
802 Nut, Hex 3/8- 16 (2 Req.) 2 S23343 $ 5.00 1 Week
(0 in stock)
805 Washer, Lock 1 S23038 $ 2.00 1 Week
(0 in stock)
810 Plug, Pipe l/4NPT(5Req.) 5 S23715 $ 7.00 1 Week
(0 in stock)



NOTES :
