Series # B51722 Parts
B3JPBM 20HP 1800RPM 3PH 60HZ 256JP SINGL

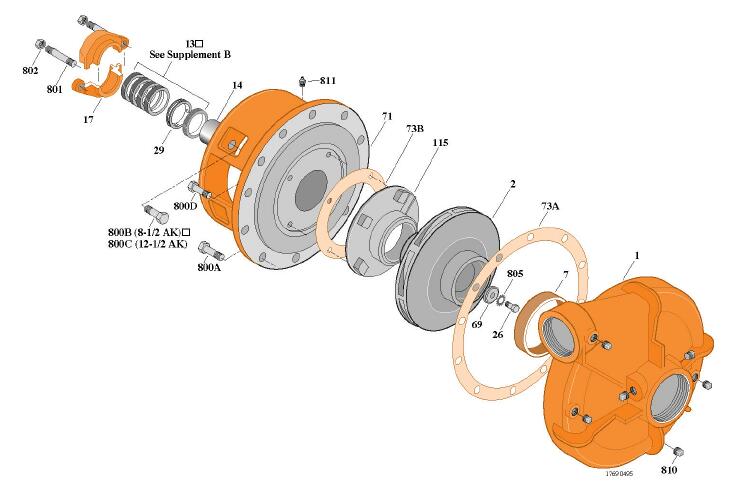

PARTS LIST for Series # B51722 Pump is at the bottom of this page.
Parts can be ordered off of the page by checking the desired checkboxes and submitting the form.

To order parts, Check Off the boxes in the first column for each item you need.
Select the ADD TO ORDER button at the bottom to add to your Order.
Key Description Qty. Part Number Price CAN SHIP

2 Impeller, 11.12 Diameter, for 20 HP / 3 phase pumps. 1 L06177 $ 1032.00 1 Week
(0 in stock)
7 Ring, Wearing 1 S04176 $ 103.00 1 Week
(0 in stock)
13 Rings, Packing (Set of 4) 1 S13435 $ 90.00 1 Week
(0 in stock)
14 Sleeve, Shaft 1 S05149 $ 92.00 1 Week
(0 in stock)
17 Gland, Packing 1 B82470 $ 119.00 1 Week
(0 in stock)
26 Screw, Impeller 1/2 - 13 x 1-1/2 1 S23623 $ 7.00 1 Week
(0 in stock)
29 Ring, Lantern 1 S19200 $ 35.00 1 Week
(0 in stock)
32 Key, 1/4x2-1/4 (See Note) 1 S23677 $ 10.00 1 Week
(0 in stock)
69 Washer, Impeller 1 S06319 $ 44.00 1 Week
(0 in stock)
71 Bracket 1 H02384 $ 2996.00 1 Week
(0 in stock)
73A Gasket, Volute 1 S06271 $ 17.00 1 Week
(0 in stock)
73B Gasket, Balance Ring 1 S09943 $ 8.00 1 Week
(0 in stock)
115 Ring, Balance 1 M05115 $ 245.00 1 Week
(0 in stock)
800A Capscrew, 5/8 - 11 x 1-1/2 (12 Req.) 1 S26999 $ 5.00 1 Week
(0 in stock)
800B Capscrew, 1/2- 13 x 1-1/2 (4 Req.) 4 S26916 $ 5.00 1 Week
(0 in stock)
801 Stud, 3/8- 16x2-1/2 (2 Req.) 2 S04438 $ 14.00 1 Week
(0 in stock)
802 Nut, Hex 3/8- 16 (2 Req.) 2 S23343 $ 5.00 1 Week
(0 in stock)
805 Washer, Lock 1 S23038 $ 2.00 1 Week
(0 in stock)
810 Plug, Pipe l/2NPT(6Req.) 6 S23717 $ 8.00 1 Week
(0 in stock)
811 Fitting, Grease 1 S23700 $ 7.00 1 Week
(0 in stock)



NOTES :
