Shurflo Pumps | Shurflo Pump Parts

Scroll down the page for prices & model #"s, or to order a specific model.

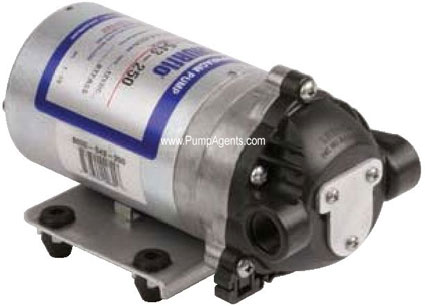

Model # 8007-543-850 - Diaphragm Pump

download_icon Product Data Sheet (Performance & Dimensions)
download_icon Operation & Maintenence Manual (O & M)
Parts List & Parts Prices for this Pump
Order Parts

FEATURES
APPLICATIONS
MODEL NUMBER: 8007-543-850
PUMP DESIGN: Positive Displacement 3 Chamber Diaphragm Pump
CAM: 3.0 Degree
MOTOR: Permanent Magnet, P/N 11-184-04, Fuse Protected, On/Off Switch, Connector
VOLTAGE: 12 VDC Nominal
PRESSURE SWITCH: None
LIQUID TEMPERATURE: 170 Degrees Fahrenheit (77 Degrees Centigrade) Max.
PRIME: Self-Priming Up To 11 Ft. Vertical,
    Max. Inlet Pressure 30 PSI (2.1 Bar)
PORTS: 3/8"-18 NPT Female
MATERIAL OF CONSTRUCTION:
    PLASTICS - Polypropylene
    VALVES - Viton
    DIAPHRAGM - Santoprene
    FASTENERS - Cad or Zinc Plated Steel
NET WEIGHT: 4.6 Lbs (2.1 Kg)
DUTY CYCLE: Continuous (See Temperature Rise Chart)
TYPICAL APPLICATIONS: Agricultural Spraying
BYPASS: 45 PSI

Available Model # 8007-543-850 - Diaphragm Pump
Model # Description Price / ea. ORDER CAN SHIP
8007-543-850

Click here for Parts

download_icon Datasheet
Pump and Motor Unit, 12 Volts DC, 1.8 GPM open flow, Viton valves, Santoprene diaphragm, 45 PSI Bypass, 3/8" NPT-Female ports. w/Manual Switch 2 Pin Connector and Fuse, Poly Housing $ 129.63 Qty. 3 Weeks
(out of stock)
