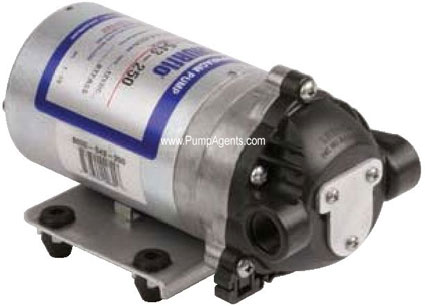

Model # 8006-543-250 - Diaphragm Pump

Shurflo Pump 8006-543-250

Shurflo # 8006-543-250

Shurflo catalog # 8006-543-250, Pump and Motor Unit, 12 Volts DC, 1.4 GPM open flow, Viton valves, Santoprene diaphragm, 45 PSI internal bypass with built-in on/off switch, Fuse holder, Prewired w/2-wire molded connector and motor shroud, No Demand Switch, 3/8" NPT-Female ports, Poly Housing

Price : $ 152.25

Qty :

3 Weeks (out of stock)

Click Here for PARTS



Product Information :


Applications

MODEL NUMBER 8006543250 PUMP DESIGN Positive Displacement 3 Chamber Diaphragm Pump CAM 3.0 Degree MOTOR Permanent Magnet, P/N 1111107 VOLTAGE 12 VDC Nominal PRESSURE SWITCH None LIQUID TEMPERATURE 170 Degrees Fahrenheit 77 Degrees Centigrade Max. PRIME SelfPriming Up To 11 Ft. Vertical,     Max. Inlet Pressure 30 PSI 2.1 Bar PORTS 3/8"18 NPT Female MATERIAL OF CONSTRUCTION     PLASTICS Polypropylene     VALVES Viton     DIAPHRAGM Santoprene     FASTENERS Zinc Plated Steel NET WEIGHT 4.0 Lbs 1.8 Kg DUTY CYCLE Continuous See Temperature Rise Chart TYPICAL APPLICATIONS Agricultural Spraying BYPASS 45 PSI
