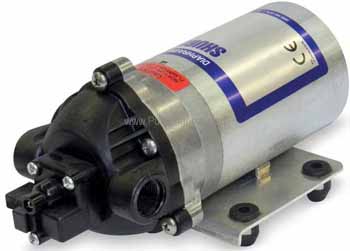

Model # 8000-991-236 - 24 VDC w/ Switch
Shurflo Pumps
| FEATURES
|
|
|
|
|
|
APPLICATIONS |
PUMP DESIGN: Positive Displacement 3 Chamber Diaphragm Pump
CHECK VALVE: (1-Way Operation) Prevents Reverse Flow
CAM: 2.0 Degree
MOTOR: Permanent Magnet, P/N 11-124-10, Thermally Protected
VOLTAGE: 24 VDC Nominal
PRESSURE SWITCH: Adjustable Shut-Off (Range 40-60 PSI), Factory Set @ 60 PSI, Turn On 40 PSI +/- 5 PSI
LIQUID TEMPERATURE: 180 Degrees Fahrenheit (82 Degrees Centigrade) Max.
PRIME: Self-Priming Up To 5 Ft. Vertical,
Max. Inlet Pressure 30 PSI (2.1 Bar)
PORTS: 3/8"-18 NPT Female
MATERIAL OF CONSTRUCTION:
PLASTICS- Nylon
VALVES- EPDM
DIAPHRAGM- Santoprene
FASTENERS- Zinc Plated Steel
NET WEIGHT: 3.8 Lbs (1.7 Kg)
DUTY CYCLE: Intermittent
TYPICAL APPLICATIONS: R. O. Booster Pump
|
|
|
|
| Available
Model # 8000-991-236 - 24 VDC w/ Switch |
| Model
# |
Description |
Price
/ ea. |
ORDER |
CAN SHIP |
|
