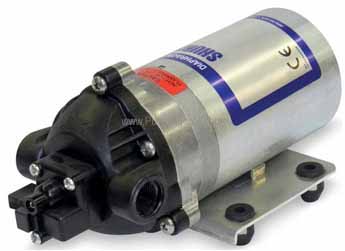

Model # 8000-543-238BX - Diaphragm Pump

Shurflo Pump 8000-543-238BX

Shurflo # 8000-543-238BX

Shurflo catalog # 8000-543-238BX, Pump and Motor Unit, 12 Volts DC, 1.8 GPM open flow, Viton valves, Santoprene diaphragm, 100 PSI Demand Switch, 3/8" NPT-Female ports, Poly Housing

Price : $ 175.09

Qty :

3 Weeks (out of stock)



Product Information :

Features :


Applications

PUMP DESIGN Positive Displacement 3 Chamber Diaphragm Pump CHECK VALVE 1Way Operation Prevents Reverse Flow CAM 3.0 Degree MOTOR Permanent Magnet, P/N 1111100 VOLTAGE 12 VDC Nominal PRESSURE SWITCH Adjustable ShutOff Range 80100 PSI, Factory Set 100 PSI, Turn On 85 PSI / 5 PSI LIQUID TEMPERATURE 170 Degrees Fahrenheit 77 Degrees Centigrade Max. PRIME SelfPriming Up To 10 Ft. Vertical,     Max. Inlet Pressure 30 PSI 2.1 Bar PORTS 3/8"18 NPT Female MATERIAL OF CONSTRUCTION     PLASTICS Polypropylene     VALVES Viton     DIAPHRAGM Santoprene     FASTENERS Zinc Plated Steel NET WEIGHT 4.7 Lbs 2.13 Kg DUTY CYCLE Intermittent TYPICAL APPLICATIONS Agricultural Spraying
