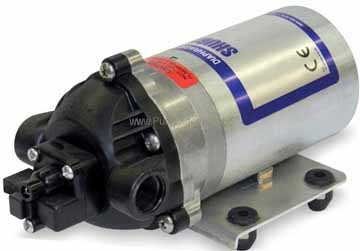

Model # 8000-151-296 - 24 VDC w/ Bypass
Shurflo Pumps
| FEATURES
|
|
|
|
|
|
APPLICATIONS |
PUMP DESIGN: Positive Displacement 3 Chamber Diaphragm Pump
CAM: 2.0 Degree
MOTOR: Permanent Magnet, P/N 11-127-10
VOLTAGE: 24 VDC Nominal
PRESSURE SWITCH: Adjustable Shut-Off (Range 40-60 PSI), Factory Set @ 60 PSI, Turn On 45 PSI +/- 5 PSI
BYPASS: 80 PSI Max.
LIQUID TEMPERATURE: 170 Degrees Fahrenheit (77 Degrees Centigrade) Max.
PRIME: Self-Priming Up To 8 Ft. Vertical,
Max. Inlet Pressure 30 PSI (2.1 Bar)
PORTS: 3/8"-18 NPT Female
MATERIAL OF CONSTRUCTION:
PLASTICS- Polypropylene
VALVES- Buna-n
DIAPHRAGM- Geolast
FASTENERS- Zinc Plated Steel
NET WEIGHT: 3.85 Lbs (1.75 Kg)
DUTY CYCLE: Intermittent
TYPICAL APPLICATIONS: Soil Extraction
|
|
|
|
