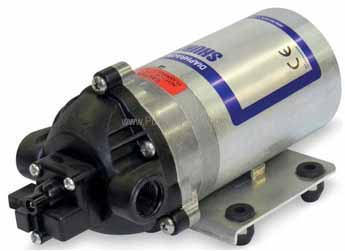

Model # 8000-082-255 - 36 VDC w/ Bypass
Shurflo Pumps
| FEATURES
|
|
|
|
|
|
APPLICATIONS |
PUMP DESIGN: Positive Displacement 3 Chamber Diaphragm Pump
CAM: 2.5 Degree
CHECK VALVE: (2-Way Op.) Prevents Reverse Flow & 6 Ft. Head Forward Flow
MOTOR: Permanent Magnet, P/N 11-119-05
VOLTAGE: 36 VDC Nominal
PRESSURE SWITCH: Adjustable Shut-Off (Range 40-60 PSI), Factory Set @ 50 PSI, Turn On 35 PSI +/- 5 PSI
BYPASS: 45 PSI
LIQUID TEMPERATURE: 180 Degrees Fahrenheit (82 Degrees Centigrade) Max.
PRIME: Self-Priming Up To 5 Ft. Vertical,
Max. Inlet Pressure 30 PSI (2.1 Bar)
PORTS: 3/8"-18 NPT Female
MATERIAL OF CONSTRUCTION:
PLASTICS- Nylon
VALVES- Viton
DIAPHRAGM- Viton
FASTENERS- Zinc Plated Steel
NET WEIGHT: 5.3 Lbs (2.4 Kg)
DUTY CYCLE: Continuous
TYPICAL APPLICATIONS: Soil Extraction
|
|
|
|
|
Model # 8000-082-255 - 36 VDC w/ Bypass |
