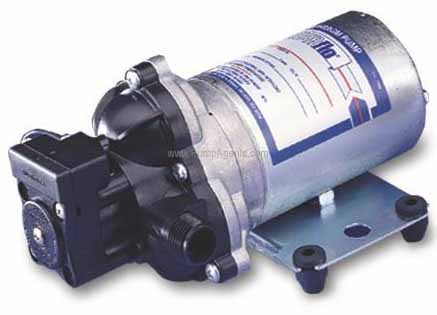

Model # 2088-713-534 - Diaphragm Pump

Shurflo Pump 2088-713-534

Shurflo # 2088-713-534

Shurflo catalog # 2088-713-534, Pump and Motor Unit, 12 Volts DC, 45 SS PES 3.0R 3.5G 7LSW S

Price : $226.18

Qty :

Same Day (2 in stock)



Features


Applications

PUMP DESIGN Positive Displacement 3 Chamber Diaphragm Pump Note Pump is coated with a plastic compound for improved corrosion resistance. CHECK VALVE 1Way Operation Prevents Reverse Flow CAM 3.0 Degree MOTOR Permanent Magnet, P/N 1118506, Thermally Protected VOLTAGE 12 VDC Nominal PRESSURE SWITCH SplashProof, Adjustable from 30 to 50 PSI.   Factory Set 45 PSI ShutOff, Turn On 25 PSI 5 PSI LIQUID TEMPERATURE 130 Degrees Fahrenheit 54 Degrees Centigrade Max. PRIME SelfPriming Up To 9.0 Ft. Vertical,     Max. Inlet Pressure 30 PSI 2.1 Bar PORTS 1/2"14 Male Parallel Thread MATERIAL OF CONSTRUCTION     PLASTICS Polypropylene     VALVES Santoprene     DIAPHRAGM Santoprene     FASTENERS Stainless Steel NET WEIGHT 6.0 Lbs 2.7 Kg DUTY CYCLE Continuous See Temperature Rise Chart TYPICAL APPLICATIONS Industrial, General Purpose APPROVALS U.L. Marine Listed
