Shurflo Pumps | Shurflo Pump Parts

Scroll down the page for prices & model #"s, or to order a specific model.

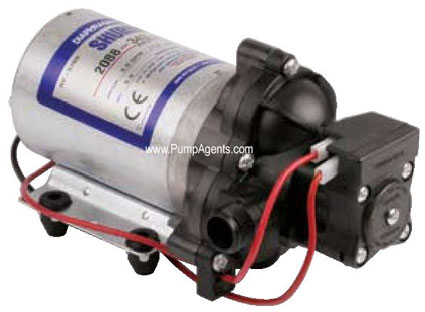

Model # 2087-593-135 - Diaphragm Pump

download_icon Product Data Sheet (Performance & Dimensions)
download_icon Operation & Maintenence Manual (O & M)
Parts List & Parts Prices for this Pump
Order Parts

FEATURES
APPLICATIONS
MODEL NUMBER: 2087-343-534
PUMP DESIGN: Positive Displacement 3 Chamber Diaphragm Pump
CHECK VALVE: (1-Way Operation) Prevents Reverse Flow
CAM: 3.0 Degree
MOTOR: Permanent Magnet, P/N 11-184-01, On/Off Switch, Connector
VOLTAGE: 12 VDC Nominal
PRESSURE SWITCH: Adjustable Shut-Off (Range 30-50 PSI)
  Factory Set @ 45 PSI, Turn On 25 PSI 5 PSI
LIQUID TEMPERATURE: 170 Degrees Fahrenheit (77 Degrees Centigrade) Max.
PRIME: Self-Priming Up To 8.0 Ft. Vertical,
    Max. Inlet Pressure 30 PSI (2.1 Bar)
PORTS: 1/2" - 14 Male Parallel Thread
MATERIAL OF CONSTRUCTION:
    PLASTICS -Polypropylene
    VALVES -Viton
    DIAPHRAGM -Santoprene
    FASTENERS -Zinc Plated Steel
NET WEIGHT: 4.9 Lbs (2.2 Kg)
DUTY CYCLE: Intermittent (See Temperature Rise Chart)
TYPICAL APPLICATIONS: Agricultural Spraying

Available Model # 2087-593-135 - Diaphragm Pump
Model # Description Price / ea. ORDER CAN SHIP
2087-593-135

Click here for Parts

download_icon Datasheet
AG Pump, Pump and Motor Unit, 12 Volts DC, 3.0 GPM open flow, Viton valves, Santoprene diaphragm, 45 PSI Demand Switch, 1/2" MSPT ports, Poly Housing $ 155.73 Qty. 3 Weeks
(out of stock)
