Features:
• Self-Priming to 20 Feet Suction Lift
• Rugged Bronze Construction
• Ideal for marine service (air conditioning, bilge, and sea water recirculating).
• O-Ring Housing seal eliminates gasket problems
• Auxiliary Connections - for convenient priming and draining
• Multiple Mechanical Shaft Seal Options -for various applications
• Pump Heads mount to Standard Footed Nema 56J Jet Pump Motors
• For Pedestal Style, see 30PB
• Optional Lifting Handle

Applications:

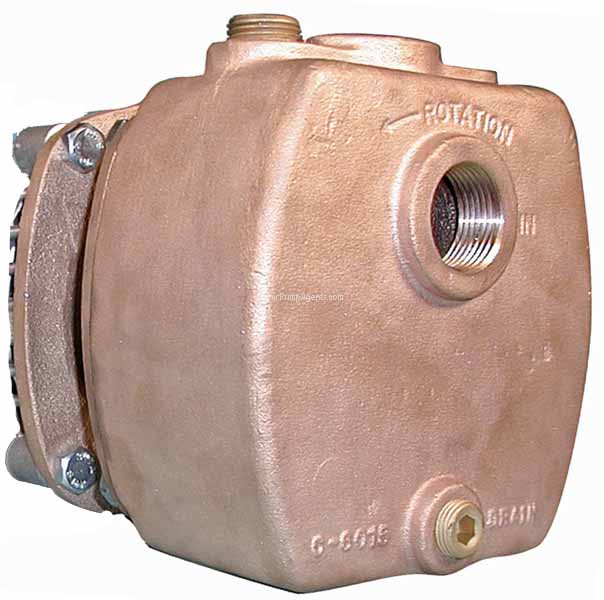

Up to 22 gallons per minute water flow and suction lift of 15 feet without a foot or check valve (25 foot suction lift using a foot or check valve and a filled inlet line). A 1/2” pipe plug on the tank top is for initial filling of priming chamber and inlet line-- pump priming is automatic thereafter. Pump seal is mechanical carbon face type mated to ceramic wear face for maximum durability. Other seal components are made of Buna N with low swell characteristics for compatibility with a wide range of liquids including many chemicals and solvents. These pump models are widely used for the pumping of Perchloroethylene. Must be operated in the horizontal position. (As shown in picture)
