March Pumps | March Pump Parts

Scroll down the page for prices & model #"s, or to order a specific model.
MDXT-3 Series

Parts List & Parts Prices for this Pump
Order Parts

FEATURES
Pump Body: Polypropylene
Impeller: Polypropylene
Shaft: Spindle is Ceramic
Shaft Seal: none - Sealless Magentic Drive, "O"-Ring is Buna N
Ports: 1/2" FPT Inlet x 3/8" FPT Outlet
Motor: 1/25 HP, 3400 rpm, 115-volt or 230-volt single phase, 50/60 Hz., air-cooled
Weight: 6 lb. Approx.
APPLICATIONS
Series MDX pumps can deliver a maximum flow of 8.4 GPM (38 LPM), are capable of serving applications with a maximum head of 19 ft. (4m). Applications include coffee dispensers, aquariums, bio-medical, dryers, ice makers, electrostatic painting, photographic processing, and vending equipment.

March "ORBITAL" Magnetic Drive Pumps eliminate the conventional shaft seals found in most pumps. This means that there is no rotating seal to wear and allow the liquid being pumped to leak out. There are only two areas in this type construction that rotate and could wear out. One area is the motor shaft and bearings. The second area is the impeller rotating on a stationary spindle, and hence these are the only two areas where wearing can occur.

All parts can be easily serviced and replaced in the field if necessary. By removing the 4 wing nuts, the entire pump can be disassembled. See the Repair Parts List for necessary replacement items.

DO NOT RUN DRY : The pumps should not be run dry for more than 60 seconds as the plastic impeller will squeal and bind onto the stationary spindle.

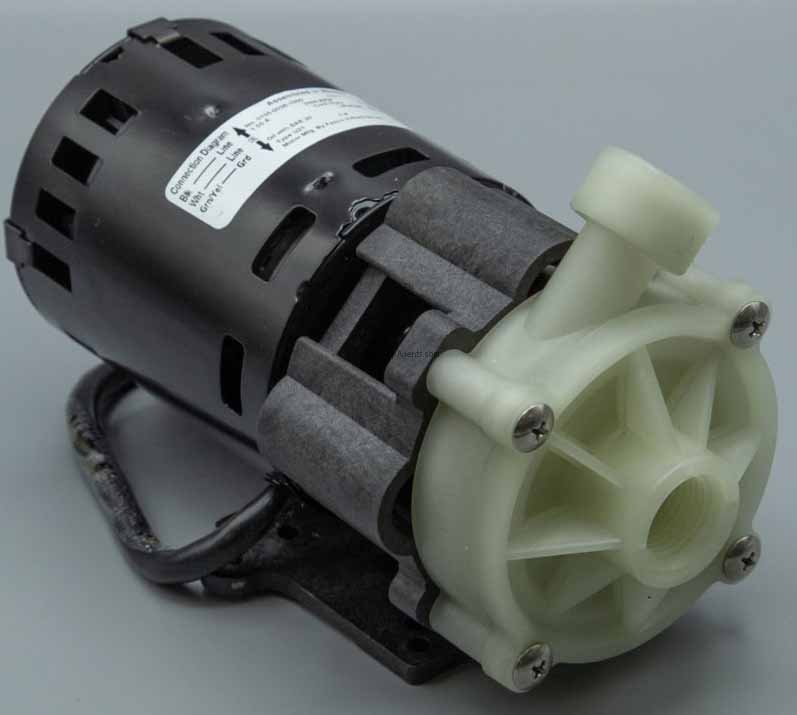

March Pump 0135-0174-0300, 0135-0174-0400
Available MDXT-3 Series
Model # Description Price / ea. ORDER CAN SHIP
0135-0174-0300

 MDXT-3

download_icon Datasheet
Model # MDXT-3, Magnetic Drive Pump, Polypropylene, comes with a 115 VOLT, 1/25 Horsepower, 50/60HZ Air Cooled Motor, with 3 foot Cord. $ 197.80 Qty. Same Day
(4 in stock)
0135-0174-0400

 MDXT-3

download_icon Datasheet
Model # MDXT-3, Magnetic Drive Pump, Polypropylene, comes with a 230 VOLT, 1/25 Horsepower, 50/60HZ Air Cooled Motor, with 3 foot Cord. $ 226.55 Qty. Same Day
(1 in stock)
