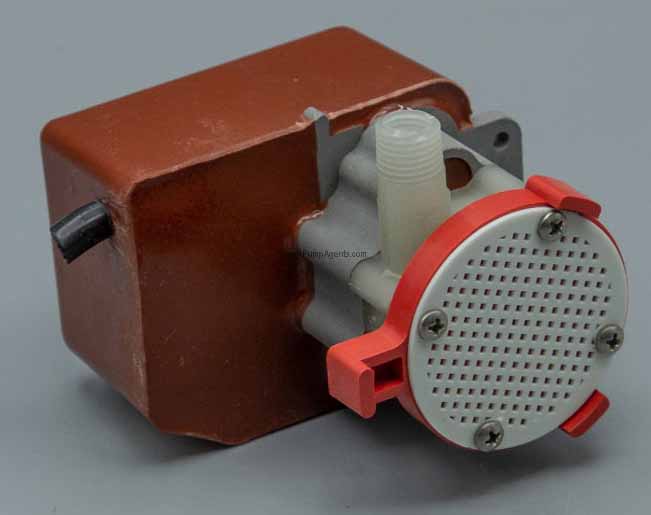

1U-MD Series
March Pumps
| FEATURES
|
| Pump
Body: |
Polypropylene
|
|
Impeller: |
Nylon & Ceramic
|
|
Shaft: |
Spindle is 316 Stainless Steel
|
|
Shaft Seal: |
none - Sealless Magentic Drive, "O"-Ring is Buna N
|
|
Port Size: |
Screen Inlet x 1/4" MPT Outlet
|
|
Motor / Amp Draw: |
1/200 HP (.003 kw), 3200 rpm, 115-volt or 230-volt single phase, 50/60 Hz., submersible (blue epoxy color)
|
|
Pressure Switch Setting: |
3 lb. Approx.
|
|
|
|
|
|
APPLICATIONS |
|
Small but versatile, March Series 1 pumps can deliver a minimum of 1.7 GPM (7 LPM) up to 3.0 GPM (9 LPM). All Series 1 pumps are capable of serving applications with a maximum head of 4.5 ft. (1.3 m). at zero GPM (0 LPM). Applications include photographic processing equipment, refrigeration systems and water displays or fountains. Maximum recommended fluid temperatures are 130º F (55º C) for submersible models.
|
|
|
|
|
1U-MD Series |
| Model
# |
Description |
Price
/ ea. |
ORDER |
CAN SHIP |
|
