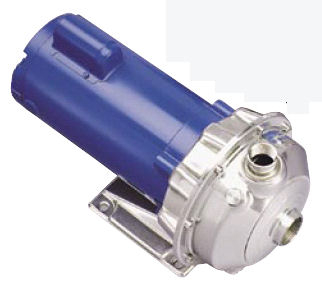

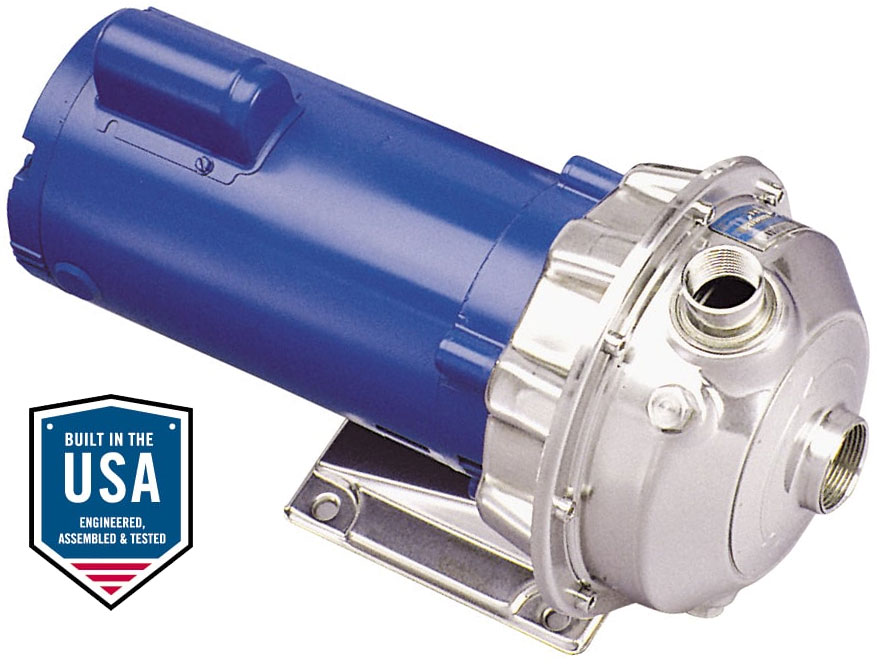

Model # 1ST1D5E4
Goulds Pumps
| FEATURES
|
| Pump
Body: |
316 Stainless Steel
|
|
Impeller: |
316 Stainless Steel
|
|
Shaft: |
Motor Shaft is 404 Stainless Steel
|
|
Shaft Seal: |
Standard Mech. Seal is Viton/Carbon/Ceramic/S.S, Casing "O"-Ring is Viton. Optional high temperature and chemical duty seals available.
|
|
Port Size: |
1-1/4" NPT Inlet x 1" NPT Discharge
|
|
Motor / Amp Draw: |
1/2 HP to 3 HP, 115/230 Volt single phase, or 208-230/460 Volt 3 phase. NEMA standard open dripproof, totally enclosed fan cooled or explosion proof enclosures. Rugged ball bearing design for continuous duty under all operating conditions.
|
|
Pressure Switch Setting: |
40
|
|
|
|
|
|
APPLICATIONS |
Specifically designed for a broad range of general applications traditionally requiring various materials such as all iron, bronze fitted, all bronze or stainless construction.
• Water circulation
• Booster service
• Liquid transfer
• Spray system
• Chillers
• Washing/cleaning systems
• Injection molding cooling
• Reverse osmosis
• Air scrubbers
• Heat exchangers
• Filtration systems
• Jockey pumps
• OEM applications
• General water services
|
|
|
|
